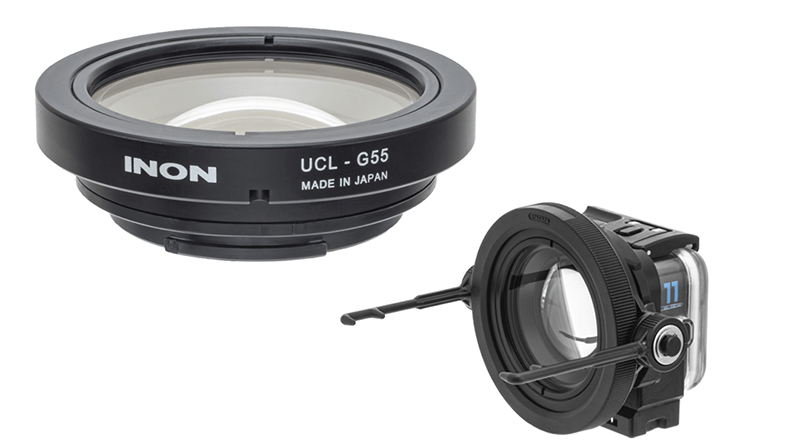

Inon UCL-G55 ZD Underwater Close-up Lens

Part #: INO-4570018120978

The Inon UCL-G55 ZD is a specialized close-up lens engineered to enhance the underwater macro capabilities of GoPro cameras and other action camera systems. Action cameras like the GoPro HERO series utilize wide-angle, fixed-focus lenses, making it difficult to achieve sharp focus on small, close-range subjects underwater. The UCL-G55 ZD is purpose-built to overcome this limitation by enabling ultra-high magnification while maintaining image clarity and minimal optical distortion.

This lens is part of Inon’s UCL-G series and offers the highest magnification among all models in the lineup. Specifically, it provides a 4x scale ratio magnification compared to the UCL-G165II, making it suitable for photographing minute sea life such as nudibranchs, shrimp, or fish larvae.

Due to the optical nature of close-up lenses, the depth of field decreases as magnification increases. The UCL-G55 ZD compensates for this by including a Focus Stick accessory, which assists users in maintaining a consistent distance between the camera and the subject. This helps minimize camera shake and focus drift—especially critical at this level of magnification. Inon recommends the use of a tripod for optimal results, particularly when recording video or working with fast-moving or light-sensitive subjects.

The Inon ZD Mount System is built into the lens for tool-free attachment and detachment underwater. This bayonet-style mount allows divers to quickly swap lenses mid-dive. When the UCL-G55 ZD is not in use, it can be stored using the Inon ZD Lens Holder, preventing accidental loss or damage.

This lens is fully compatible with the GoPro underwater camera ecosystem when used in combination with the required Inon “ZD Front Mask” mount. It avoids vignetting, which commonly occurs when non-native lenses are used with ultra-wide GoPro optics, and is calibrated for edge-to-edge clarity.

Key Features of the Inon UCL-G55 ZD

• 4x magnification compared to UCL-G165II
• Bayonet-style Inon ZD Mount for quick underwater lens swapping
• Focus Stick included to support stable shooting at high magnification
• Highest magnification lens in the UCL-G series
• Optimized for GoPro and action camera optics
• No vignetting or corner blur with compatible setups
• Ultra-close focusing distance for capturing small marine subjects

Technical Specifications of the Inon UCL-G55 ZD

• Magnification: 4x compared to UCL-G165II
• Mount Type: INON ZD Mount
• Included Accessory: Focus Stick (mountable and adjustable)
• Recommended Setup: Use with tripod for maximum image stability
• Material: Corrosion-resistant aluminum alloy; optical glass with multi-coating
• Depth of Field: Shallow (typical of high-magnification lenses)
• Compatible Cameras: GoPro HERO4 and later (requires ZD Front Mask)
• Storage Option: Compatible with INON ZD Lens Holder
• Primary Use Case: Ultra-macro underwater imaging

Camera Compatibility

• HERO 13 Black
• HERO 12 Black
• HERO 11 Black
• HERO 10 Black
• HERO 9 Black
