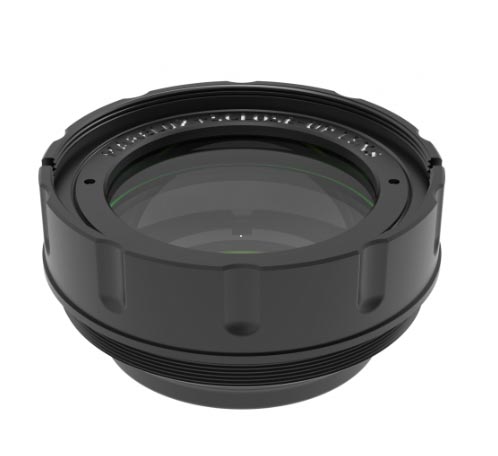

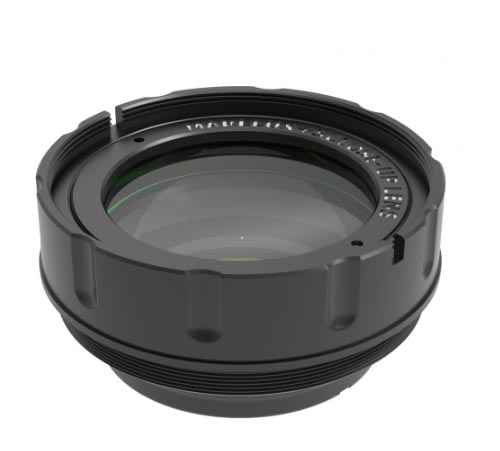

Marelux Macroview M-5 Macro Wet Lens
Part #: MX-42307
Product Overview:
The Marelux Macroview MV-5 is a high-performance macro wet lens designed for precise underwater close-up photography. Built with a 3-element, 2-group optical construction, this wet lens provides a +5 diopter power and a maximum magnification of x1.5 without optical distortion.
Key Specifications & Features:
- Diopter / Focal Length: +5 (200mm underwater focal length)
- Max Magnification: x1.5
- Working Distance: 180mm – 220mm (from the front lens surface)
- Optical Design: 3 elements in 2 groups
- Mounting: M67 x P0.75 thread (includes a removable adapter ring for macro ports, removable for use with flip adapters)
- Depth Rating: 100 meters (330 feet)
- Dimensions: 70mm x 28mm
- Weight: 180g in air / 115g underwater

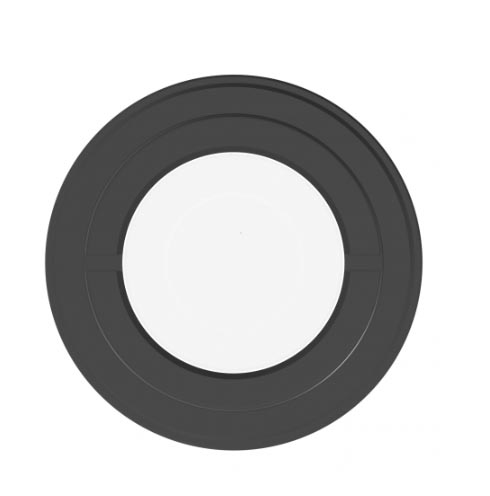

** It includes an adapter ring (for mounting on the macro port), which must be removed when used with the flip adapter.
Marelux has developed a comprehensive ecosystem of macro and wide-angle underwater conversion lenses, featuring both wet and dry optical systems. Our premium Macroview (+15, +10, +5) wet conversion lenses are precisely engineered to eliminate underwater optical distortions. They deliver an ultra-short working distance and powerful magnification, making it effortless to capture the finest details of tiny marine critters.
- Precision Internal Optics: A proprietary multi-element lens configuration actively corrects chromatic aberration and edge distortion.
- Underwater Detachability: Featuring a fast-release docking system, double and mono flip holders etc, these setups allow users to install or detach Macroview lenses quickly and easily while underwater. This versatility enables a seamless transition back to the original macro lens inside the port, while also providing the option for a much closer shooting distance, bigger magnification, and shorter of field of view.
