Is the SEACAM Sony A9 III / A1 II Housing Right for You?
This SEACAM housing is designed for serious Sony shooters building an underwater system around either the Sony A9 III or A1 II. Its strongest appeal is the combination of direct camera control, the established SEACAM port and viewfinder ecosystem, configurable flash connections and extensive system expansion options.
Best For
Experienced underwater photographers using the Sony A9 III or A1 II who want to build a professional SEACAM-based system for wide-angle, macro, action and big-animal photography.
Main Advantage
Extensive access to important Sony controls combined with SEACAM's port, viewfinder, lighting and accessory ecosystem makes it possible to configure the housing around a demanding underwater photography workflow.
Compatibility
Designed for the Sony Alpha 9 III and Sony Alpha 1 II. Lens compatibility depends on the correct SEACAM port, extension and zoom or focus gear specified in the current Sony Port Chart.
Important to Know
The standard operating depth is 80m and the vacuum test is listed by SEACAM as optional. Ports and lens-specific system components also need to be matched to your lens before ordering.
Quick Specifications
| Camera Compatibility | Sony A9 III / Sony A1 II |
|---|---|
| Operating Depth | 80m standard; deeper rating available from SEACAM upon request |
| Dimensions | 250 × 160 × 120mm without port, viewfinder or handles |
| Weight | 1900g without port or viewfinder |
| Flash Connections | 2 flash sockets; S6 or N5 configuration |
| Leak Detection | Optical-acoustic leak detector |
| Handles | 2 removable handles |
| Optional Connections | Remote, LAN, Power and HDMI sockets; optional vacuum test |
What You Need to Know
Compatibility
The housing is designed for both the Sony A9 III and Sony A1 II. SEACAM provides controls for the shutter, front and rear dials, power, drive/focus mode dial, manual focus or zoom, lens release and a range of function and playback controls.
Lens compatibility must be checked separately because the correct port, extension and zoom/focus gear depend on the lens you intend to use.
What You'll Need
At minimum, you will need the camera, lens and the correct SEACAM port configuration. Some lenses also require a port extension and zoom or focus gear.
Strobe cables, an interchangeable viewfinder and optional vacuum or communication connections should be selected according to your final system configuration.
Who Should Choose It?
This housing makes the most sense for photographers who want to build around the SEACAM system or already own compatible SEACAM ports, viewfinders or lighting equipment. If a 100m standard depth rating or an integrated vacuum monitoring system is a major priority, it is worth comparing the available Nauticam and Marelux systems as well.
Compatibility Resources
Use the current SEACAM chart to confirm the correct port, extension and lens gear before ordering.
Not sure which components you need? Contact Bluewater Photo and we can help confirm your camera, lens, port, gear and lighting configuration before you order.

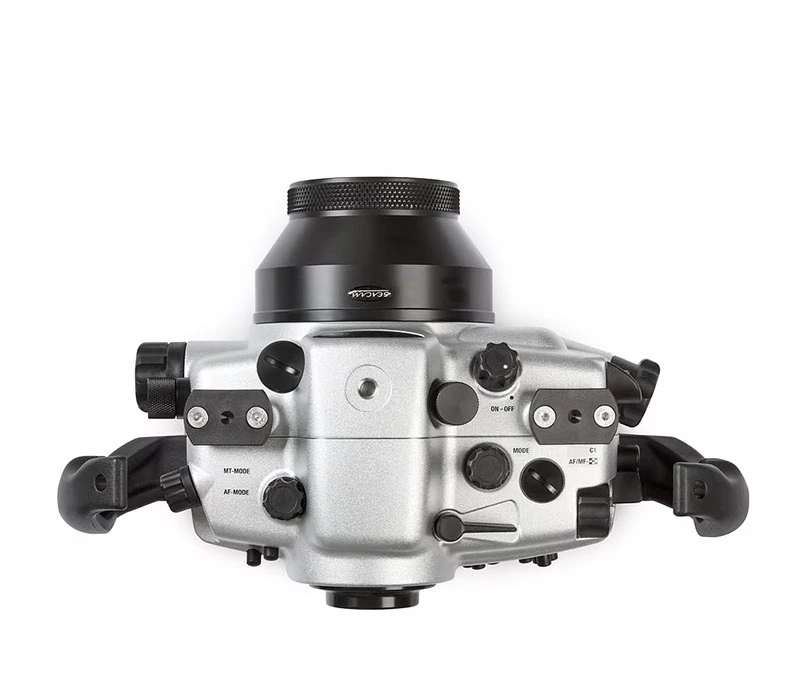

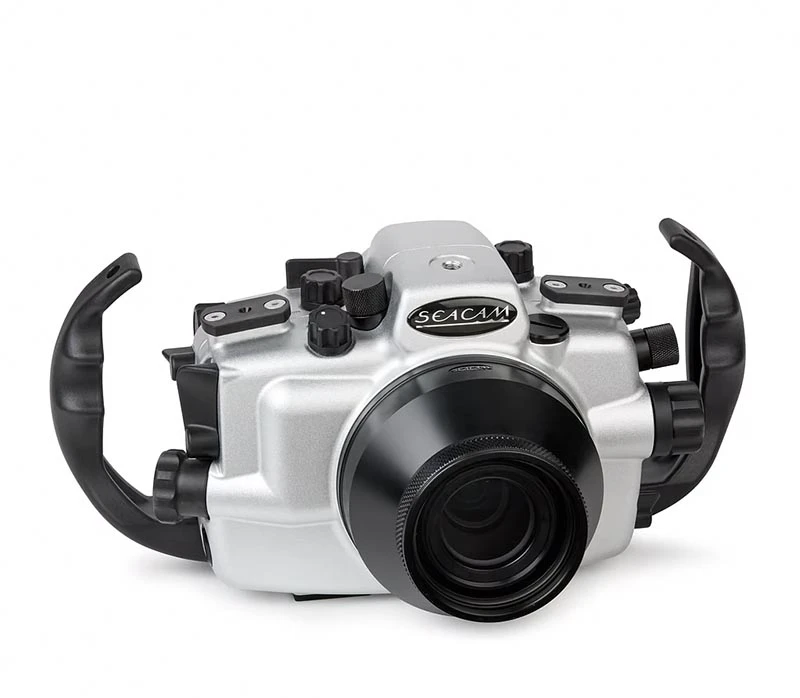

SEACAM Sony A9 III / A1 II Underwater Housing Overview
The SEACAM Sony A9 III / A1 II underwater housing turns either of Sony's professional Alpha bodies into the center of a complete SEACAM underwater imaging system. Rather than treating the housing as a standalone shell, it is designed to work with SEACAM ports, viewfinders, flash connections and accessories selected around the photographer's lenses and shooting style.
That system approach is especially important with cameras such as the A9 III and A1 II. Both are built around fast, direct operation, so being able to reach shutter, exposure dials, focus controls, drive settings and frequently used function buttons underwater matters far more than simply getting the camera below the surface.
SEACAM also provides two configurable S6 or N5 flash sockets, an optical-acoustic leak detector, removable handles and multiple mounting points. Optional Remote, LAN, Power and HDMI connections, along with an optional vacuum test, allow the housing to be configured for more specialized workflows.
Key Features
- Designed for both the Sony A9 III and A1 II, giving photographers access to SEACAM's system with either professional Sony body.
- Direct access to important camera controls helps preserve the fast shooting workflow these Sony bodies are designed around.
- Two S6 or N5 flash sockets provide configurable wired strobe connectivity for compatible lighting systems.
- Optical-acoustic leak detection provides both visual and audible warning if water is detected.
- 80m standard operating depth covers recreational and a wide range of advanced underwater photography applications.
- Two removable handles and integrated mounting points provide a foundation for strobes, lights and other system accessories.

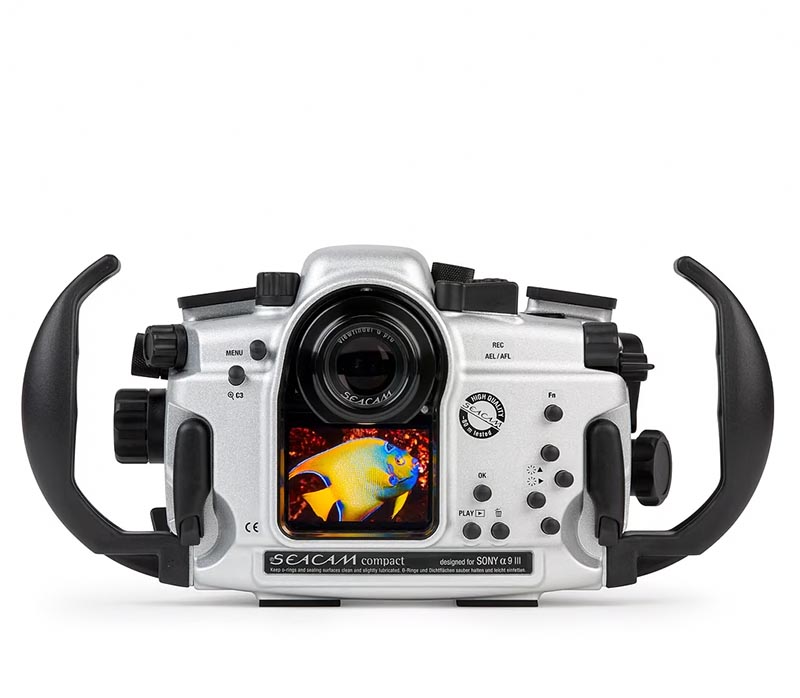

- Clear LCD monitor window keeps the camera's rear display visible while shooting.
- Extensive SEACAM port support allows compatible Sony lenses to be configured with the appropriate dome, flat or macro port, extension and gear.
What's Included
Included with the Housing
- ✓ SEACAM Sony A9 III / A1 II housing
- ✓ 2 removable handles
- ✓ 2 × 25mm flash-arm T-pieces
- ✓ Optical-acoustic leak detector
- ✓ Spare O-ring set
- ✓ Grease and maintenance oil
- ✓ Allen key set
- ✓ Wrist strap
- ✓ Neoprene bag
- ✓ Protective caps
- ✓ Manual
Sold Separately / May Be Required
- Sony A9 III or Sony A1 II camera body
- Compatible SEACAM port for your lens
- Port extension where specified by the SEACAM Port Chart
- Zoom or focus gear where required
- Strobes and appropriate S6/N5 cables where required
- Optional vacuum test system
- Optional Remote, LAN, Power or HDMI connections
- SEACAM viewfinder configuration
Configuration note: SEACAM lists two flash sockets in S6 or N5 configurations.
Built Around Real Underwater Shooting
Direct Access to the Controls That Matter

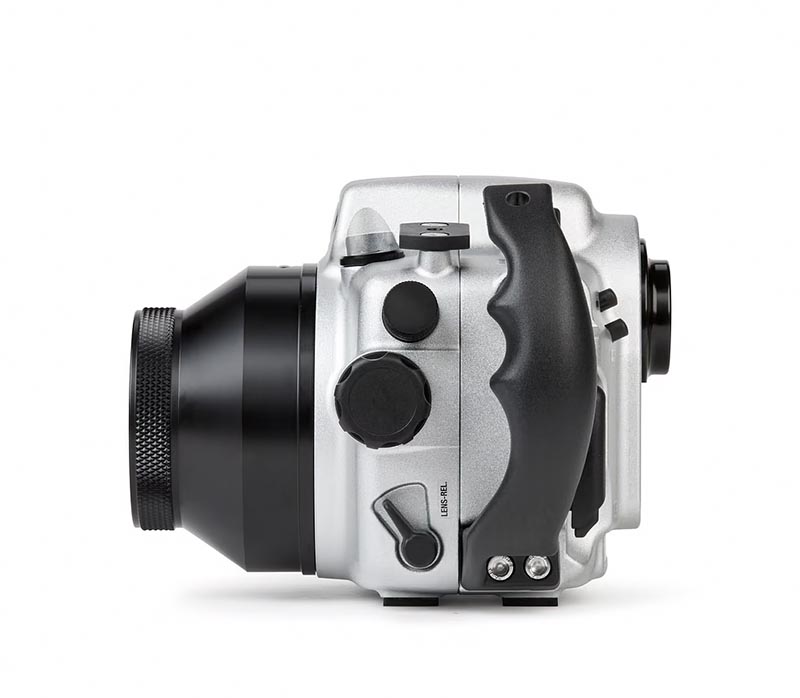

SEACAM provides external operation for the shutter release, front and rear dials, power, manual focus or zoom, lens release, Mode, drive and focus-mode controls and a range of Sony function buttons.
- Change exposure without interrupting your shooting position.
- Reach commonly used focus and drive functions underwater.
- Useful for fast-moving subjects where menu-heavy operation can cost a shot.
Build the Port System Around Your Lens
SEACAM's current Sony Port Chart covers a broad selection of Sony E-mount lenses and specifies the port, extension and available zoom or focus gear required for each supported configuration.
- Configure wide-angle, fisheye and macro setups individually.
- Avoid guessing which extension is required.
- Check the current chart before purchasing a new lens or port.
Leak Detection and Expansion Options
An optical-acoustic leak detector is part of the housing specification, while SEACAM lists vacuum testing and Remote, LAN, Power and HDMI connections as optional.
- Visual and audible leak warning.
- Optional vacuum testing for an additional pre-dive seal check.
- Optional connections can support more specialized stills or video configurations.
How Does It Compare?
The SEACAM, Nauticam and Marelux systems all support the Sony A9 III and A1 II, but the surrounding port, monitoring and triggering ecosystems differ considerably.
| Feature | SEACAM A9 III / A1 II | Nauticam A1 II / A9 III | Marelux A1 II / A9 III |
|---|---|---|---|
| Camera Compatibility | Sony A9 III / A1 II | Sony A9 III / A1 II | Sony A9 III / A1 II |
| Standard Depth Rating | 80m | 100m | 100m |
| Port Ecosystem | SEACAM port system with dedicated Sony Port Chart | Nauticam N100 | Marelux Series 5 |
| Notable System Feature | 2 S6 or N5 flash sockets; optional Remote, LAN, Power, HDMI and vacuum test | Integrated fiber-optic bulkheads and standard vacuum monitoring / leak detection | Flashfuel FF2100 manual flash trigger / power-bank system |
| Consider It If... | You want the SEACAM port, viewfinder and wired strobe ecosystem or already own compatible SEACAM equipment. | You want the N100 ecosystem and integrated vacuum monitoring as standard. | You want the Series 5 ecosystem and Marelux's Flashfuel system. |
Housing choice should be based on the complete system, not the housing body alone. Existing ports, preferred lenses, viewfinder choice, strobe triggering and future camera plans can materially change which system makes the most sense.
Why Buy from Bluewater?
Expert Advice
Get help choosing a housing configuration based on the way you actually shoot underwater.
Compatibility Help
We can help match your camera, lens, port, extension, gear, viewfinder and lighting components.
Real-World Experience
Our team works with underwater camera systems every day and can help identify configuration details before they become expensive mistakes.
Support After Purchase
Need help when your system arrives? Bluewater can assist with setup questions and future system expansion.
Helpful Guides & Resources
Technical Specifications
Compatibility & Physical
- Sony A9 III / A1 II
- Dimensions: 250 × 160 × 120mm
- Dimensions exclude port, viewfinder and handles
- Weight: 1900g
- Weight excludes port and viewfinder
- Operating depth: 80m
- Deeper rating available from SEACAM upon request
Controls
- Power switch
- Shutter release
- Front and rear dial
- Manual focus or zoom
- Lens release
- Mode control
- C1 / AEL
- Movie / AF-ON
- Drive and focus-mode dial
- Control wheel and center button
- Menu, C3, Fn, Playback and C4
Connections & Mounting
- 2 flash sockets: S6 or N5
- 2 × 25mm flash-arm T-pieces
- M8 thread on both sides beneath T-pieces
- 3/8-inch tripod thread
- M8 thread on housing top
- 2 removable handles
- Clear LCD monitor window
- Optical-acoustic leak detector
- Optional Remote, LAN, Power and HDMI sockets
- Optional vacuum test
SEACAM states that underwater buoyancy can be neutral depending on the completed configuration. Actual buoyancy will vary with the selected port, viewfinder, camera, lens and accessories.
- SEACAM Sony A9 III / A1 II housing
- 2 removable handles
- 2 × 25mm flash-arm T-pieces
- Optical-acoustic leak detector
- Spare O-ring set
- Grease and maintenance oil
- Allen key set
- Wrist strap
- Neoprene bag
- Protective caps
- Manual
Frequently Asked Questions
Does this SEACAM housing fit both the Sony A9 III and A1 II?
Yes. SEACAM lists this housing for both the Sony Alpha 9 III and Sony Alpha 1 II.
What is the depth rating?
The standard operating depth is 80 meters. SEACAM states that deeper ratings are available upon request.
Does the housing include a vacuum system?
SEACAM lists its vacuum test as optional rather than standard. The housing does include an optical-acoustic leak detector.
Which port do I need?
The correct port depends on your lens. Use the current SEACAM Sony Port Chart to determine the required port, extension and zoom or focus gear, or contact Bluewater for help.
What strobe connections does the housing use?
SEACAM specifies two flash sockets in S6 or N5 configurations. The correct configuration and strobe cable should be confirmed for your lighting system before ordering.
Can I use zoom lenses with this housing?
Yes, where the lens is supported by SEACAM's Sony system. Many zoom lenses require a specific zoom gear and some require a port extension, so check the current port chart.
Can Bluewater help configure the complete system?
Yes. We can help verify the camera, lens, port, extension, gear, viewfinder, strobe and cable configuration before you order.
