Anglerfish Panasonic BGH1 Remote Housing

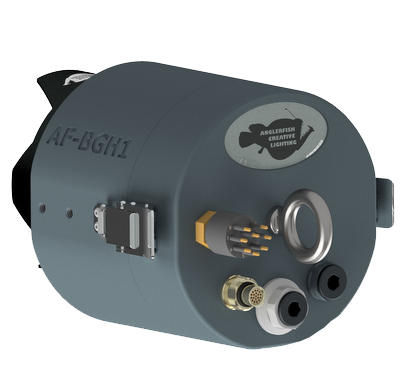

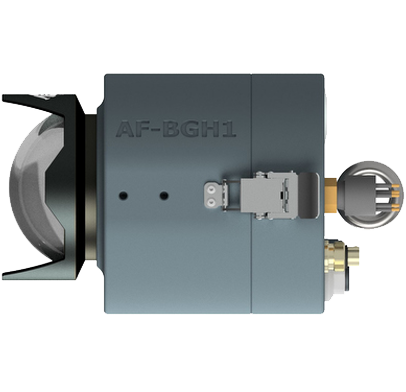

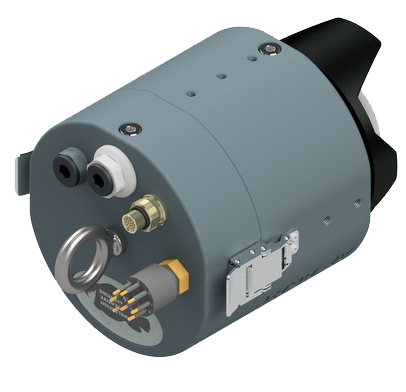

The Anglerfish Panasonic BGH1 Housing has been designed to be deployed as a remote camera system, tow cam or mounted on a submersible or an ROV. It has been designed to withstand even the harshest condition, can be operated to depths up to 150m. Special order is able with high stretch materials to be able to withstand depths of up to 1,000-2,000 meters (depends on the port system used - please contact us at sales@bluewaterphotostore.com for information about deeper applications down to 2,000 meters). In addition, it has a proprietary leak detection system which uses Bluetooth Low Energy module which can be monitored and controlled using a mobile phone. It also features multiple bulkheads such as M14, M16 and M24 for supporting various accessories.

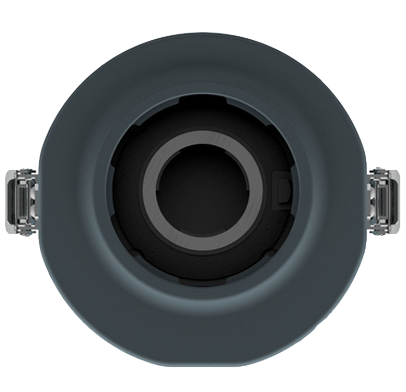

The housing has been deisgned for different kinds of application such as remote camera deployment, mounted on ROVs & submarines and as drop/tow/pole camera. It also features an N85 port system (150m option), compatible with Nauticam ports which gives you tons of options for lens support.
The Anglerfish housing is built from anodized 6061-T6 aluminum and there are high strength options for deep application with use of AL7075-T6, stainless steel SA-316 and optional marine grade titanum which makes it rigid, robust and built-to-last. For deep-sea application, Anglerfish can supply custom ports which are made of BK7 or Sapphire glass. They can also provide underwater cables appropriate for your application.
Email us at sales@bluewaterphotostore.com or call (310) 633-5052 with any questions.
