This Nauticam housing for the Canon R6 Mark III is a robust, configurable Nauticam underwater housing designed for serious photo and video work below the surface. It combines Nauticam’s “Mission Control” ergonomics — with essential controls placed right at the handles — and a flexible N120 port system that supports both Canon RF and EF lenses via the appropriate adapter.
With integrated vacuum check and leak detection electronics (when paired with an accessory vacuum valve), support for Nauticam’s premium water-contact optics, and options for optical/electronic strobe triggering and HDMI 2.0/1.4 monitors, this system is built to grow with your needs. For lens and port selection, always confirm combinations using the official Nauticam port chart to ensure proper fit and performance.

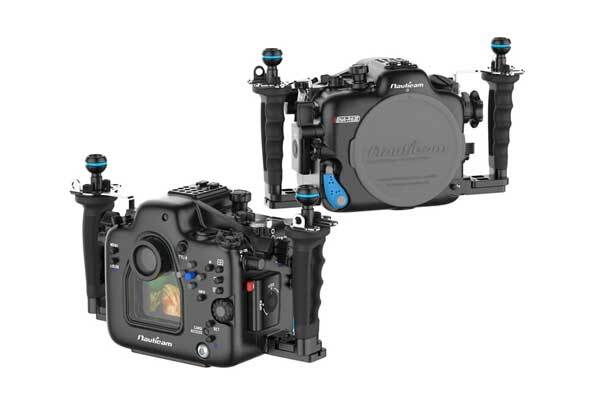

- What it is: a precision aluminum underwater housing for the Canon R6 Mark III with ergonomic “Mission Control” handles and integrated vacuum/leak monitoring.
- Best for: experienced underwater shooters who need reliable access to wide-angle, macro, and hybrid video/photo setups; not ideal for casual snorkelers wanting a small, all-in-one compact.
- Key compatibility: N120 port system supports Canon RF lenses directly and many EF lenses via EF-to-RF adapters, plus Nauticam’s FCP, WACP, WWL-1b, MFO, SMC, and EMWL optics.
- Setup advantages: N120 Port Lock II, Rotary housing lock, and dedicated RF Lens REL lever speed up lens and port changes without opening the back; top and bottom mounting points accept monitors, lights, and tripod accessories.
- Important limitations: specific lens/port/gear combinations must be matched to the Nauticam port chart; using unlisted combinations can lead to vignetting, focus issues, or control interference.
Ergonomic Controls for Underwater Use
Essential controls are placed close to the housing handles, so you can change settings without letting go of your rig. Large levers and rubberized dials make the NA-R6III easy to operate, even with gloves in cold water.
- “Mission Control” layout keeps key buttons and dials near the handles.
- Rubberized finger grooves on dials for better grip and feel underwater.
- Smooth-throw levers for shutter, AF-ON, and other primary controls.
N120 Port System & Premium Optics
The N120 port system lets you use Canon RF lenses directly and many EF lenses via adapter. Nauticam’s water-contact optics — including FCP, WACP, WWL, MFO, SMC, and EMWL — extend the NA-R6III from classic wide-angle to extreme macro and creative mixed-style imaging.
- N120 Port Lock II and rotary housing lock speed up lens and port changes.
- Supports RF and adapted EF lenses when matched to the correct port and gear.
- Compatible with Nauticam wide-angle and macro water-contact optics for top image quality.
Vacuum Safety, Leak Detection & Flash Triggering
The NA-R6III ships with integrated vacuum check and leak detection electronics. Add an optional vacuum valve to get continuous visual status of the housing’s seal. Optical and electrical flash triggering plus HDMI 2.0/1.4 support make it easy to pair strobes, video lights, and external monitors.
- Vacuum check and leak detection with color-coded LED and audible alarm.
- Temperature-compensated system helps avoid false alarms during long dives.
- Optical and electrical strobe triggering, plus HDMI support for external monitors.
Perfect for…
- Reef and wide-angle seascape photography with RF or adapted lenses.
- Macro dives using appropriate wet-macro optics for close marine life shots.
- Hybrid photo/video diving workflows — e.g., 4K/7K video plus high-resolution stills.
- Travel or expedition diving where durable, ergonomic and leak-safe housing matters.
- Underwater shooting with gloves or in cold-water conditions — ergonomic controls remain usable.
Pros
- Durable, aircraft-grade aluminum construction stands up to demanding dives.
- Ergonomic control layout keeps essential functions accessible — even with gloves underwater.
- Wide lens support via N120 system — RF lenses natively and many EF lenses via adapter.
- Integrated vacuum check and leak detection adds safety and reliability for divers.
- Supports external monitors and strobes through HDMI and fiber-optic/electrical triggering — ideal for photo and video setups.
Cons
- Actual weight in air / buoyancy in water not published — difficult to assess handle-weight balance.
- EF lenses often require adapter + modified gear — some controls (e.g., Control Ring, drop-in filters) may not be accessible.
- Full functionality (ports, wet optics) only when you use officially supported lens/port combinations — unsupported lenses may not work properly.
Nauticam is a longstanding, professional-grade brand in underwater photography known for durable, precision-machined housings and deep support for hybrid mirrorless cameras. This housing is backed by standard manufacturer warranty terms and — when purchased via Bluewater Photo — includes expert setup guidance and lifetime advice on maintenance, ports, and strobe/light setup.
Dive deeper with confidence and unlock the full potential of your Canon R6 Mark III underwater.
Learn More — Guides & Articles
- Best Underwater Camera for 2025 — Our top picks for the best cameras for underwater photography for 2025.
- Best Dive Computer — Our top dive computer picks for 2025
- Canon R6 III Underwater Housing Options — housings for the latest Canon R6 III mirrorless camera
- Best Video lights for 2025 — Our top video lights picks for 2025.
Recommended Accessories
Mounting & Handling
- 25218 Mounting Ball Set for Tripod (for NA-A9/A7RIII/BMPCC/XT3)
- 25221 M10 strobe mounting ball for housing
- 25224 M10 strobe mounting ball for housing (with hole for using lanyard)
- 25228 M5 strobe mounting ball for housing
- 28130 Hand Strap for 28113
- 28123 Pair of handles - size S (10mm closer to housing)
- 25413 27cm lanyard with 2 snap hooks
Vacuum, Power & USB
- 25625 M16 Vacuum Valve II (Pushbutton Release)
- Surface USB-PD Power Bank
- 26325 USB-C Bulkhead with USB-C Connector
- 26326 M24-M16 Adaptor for use with 26325
Viewfinders
- 32212 Nauticam Full Frame Straight Viewfinder 40 / 0.8:1
- 32214 Nauticam Full Frame Angle Viewfinder 40 / 0.8:1
- 87213 Reverse Angled Viewfinder for EMWL 40 / 0.8:1
- 87214 Reverse Straight Viewfinder for EMWL 40 / 0.8:1
HDMI 2.0 Output & Monitor Options
Required accessories for HDMI 2.0 Cable System:
- 25086 M24 adaptor for HDMI 2.0 cable (incl. tightening tool)
- 25099 M24A2R200-M28A1R170 HDMI 2.0 Cable (for NA-a1 to use with Ninja V housing)
Compatible Monitor Options (HDMI 2.0):
- 17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5” 4Kp60 4:2:2 10-bit Recorder/Monitor/Player (excl. HDMI 2.0 cable)
- 17922S Nauticam Atomos Ninja V-S Housing for Atomos Ninja V 5” 4Kp60 4:2:2 10-bit Recorder/Monitor/Player (excl. HDMI 2.0 cable) with Atomos AtomX SDI Module
HDMI 1.4 Output & Monitor Options
Required accessories for HDMI 1.4 Cable System:
- 25033 Standard HDMI bulkhead with M16 thread
- 26326 M24-M16 Adaptor for use with 26325 *instead of existing 25081
- 25100 HDMI (D-A) 1.4 Cable in 200mm length for NA-a1 (for connection from HDMI bulkhead to camera)
Compatible Monitor Options (HDMI 1.4):
- 16612 Nauticam 7'' T7 UW ULTRAHD Monitor (HDMI 1.4 input, excl. cables)
25047 HDMI (D-D) cable in 800mm length (for connection between HDMI bulkheads) *25047 is required for use with 16612 monitor housing - 17927 NA-Shinobi II Housing for Atomos Shinobi II 5.2" Monitor with HDMI 1.4 input *17927 includes 25033, 25038, 25100
- 17922 Nauticam Atomos Ninja V Housing for Atomos Ninja 5 4Kp60 4:2:2 10-bit recorder/monitor/player (excl. HDMI 2.0 cable)
- 25082 HDMI 1.4 Cable for Ninja V housing in 0.75m length (for connection from Ninja V housing to HDMI bulkhead) *25082 is required for use with 17922 monitor.
Monitor & Tripod Mounting System
- 17951 Nauticam Atomos Shogun housing mounting system
- 17952 Nauticam Monitor Housing Mounting Adaptor
- 17954 Tripod plate for NA-A7S and NA-GH4
- 17960 Universal Quadra-Pod Plate for Nauticam Housings
- 17961 Swivel and Tilt Adjustable Monitor Mount System (compatible with 16612/17927/17922 etc.)
- 25218 Mounting Ball Set for Tripod (for NA-A9/A7RIII/BMPCC/XT3)
Wet Lenses — Macro
- 81202 Super Macro Convertor 2 (4x Magnification)
- 81203 Super Macro Convertor 3 (2.3x Magnification)
- 81301 Compact Macro Convertor 1 (CMC-1, 4.5x Magnification)
- 81302 Compact Macro Convertor 2 (CMC-2, 2.8x Magnification)
- 81501 Mid-range Focus Optimizer 1
- 81503 Mid-range Focus Optimizer 3
Wet Lenses — Wide-Angle
- 83202 Wet Wide Lens 1B (WWL-1B) 130° FOV with compatible 28mm lenses (incl. float collar)
- 83203 Wet Wide Lens Compact (WWL-C) 130° FOV with compatible 24mm lenses (incl. float collar)
- 85204 Wide Angle Conversion Port - 2 (WACP-2) 140° FOV with compatible 14mm lenses (incl. float collar)
- 85205 N100 0.36x Wide Angle Conversion Port Compact (WACP-C)
- 85206 N120/N100 0.36x Wide Angle Conversion Port with Integrated Float Collar and Interchangeable Port Mounting Ring (WACP-1B)
- 85207 N120/N100 Fisheye Conversion Port with Integrated Float Collar (FCP) 170° FOV with compatible 28mm lenses
Macro to Wide-Angle — EMWL System
- 87302 EMWL Set #2 (incl. focusing unit #2, 150mm relay lens and 3 objective lenses)
- 87202 EMWL Focusing Unit #2 (for Canon FF 100mm & APS-C 60mm)
- 87211 EMWL 150mm Relay Lens
- 87212 EMWL Angled Relay Lens
- 87221 EMWL 60° Objective Lens
- 87222 EMWL 100° Objective Lens
- 87223 EMWL 130° Objective Lens
- 87226 EMWL 160° Objective Lens
Wet Lens Accessories
- 25101 M67 flip diopter holder for M67 macro ports
- 25108 M67 Double Flip Holder for M67 Macro Ports
- 83250 M67 to Bayonet Converter II
- 83214 Bayonet Mount Adaptor for SMC/CMC
- 87501 Flip Holder for EMWL
- 87512 Shade for 130° Objective Lens
- 87513 Shade for 100° Objective Lens
- 87519 Shade for 160° Objective Lens
- 87518 Strobe Mounting Brackets for EMWL Relay Lens
Specifications
- Material: Aircraft-grade aluminum
- Dimensions (W × H × D): 332 mm × 189 mm × 141 mm
- Depth Rating: 100 m (330 ft)
- Port System: N120
- Supported Wet Optics: WWL-C, FCP-1, WACP, MFO, SMC, EMWL (see nauticam port chart)
- Controls: Ergonomic handles with dedicated levers for shutter/fire, AF-ON, playback, menu/access; large rubberized dials.
- Strobe/Flash Trigger: Optical fiber-optic triggering built in; optional electrical bulkhead trigger available.
- HDMI Output: Supports HDMI 1.4 / 2.0 for external monitor or recorder.
- Included Accessories: Main O-ring, N120 port cap, 2× optical bulkhead caps, 2× handles with brackets, leak detection electronics (battery CR-2032), spare O-ring, O-ring remover & lubricant, Allen keys, padded housing bag & shoulder strap.
For full lens, port, and gear compatibility — consult the official nauticam port chart.
- NA-R6III Housing
- Main Housing O-Ring
- N120 Port Cap
- 2x Optical Bulkhead Caps
- 2x Handles with mounting balls and 2x handle brackets
- Pre-installed Leak Detection & Moisture Alarm with CR-2032 Battery
- Spare main housing O-ring, O-ring remover and Nauticam Lubricant
- Set of Allen Keys
- Padded Housing Bag and Shoulder Strap
Nauticam Canon R6 Mark III Underwater Housing — FAQ
- Does this housing fit the Canon R6 Mark III?
Yes — the NA-R6III housing is designed specifically for the Canon EOS R6 Mark III.
- Can I use my RF lenses underwater with this housing?
Yes — the N120 port system supports Canon RF lenses directly.
- What about EF lenses I own?
You can use EF lenses with a Canon EF-to-RF adapter, but zoom/focus gear may need modification and some controls (like the Control Ring) may not be reachable.
- Does the housing include leak detection or vacuum system?
Yes — it ships with a pre-installed vacuum check and leak detection electronics (battery included).
- Will it support external strobes or monitors?
Yes — the housing supports fiber-optic and optional electrical bulkhead flash triggering, and HDMI 1.4 / 2.0 for external monitor or video recorder.
