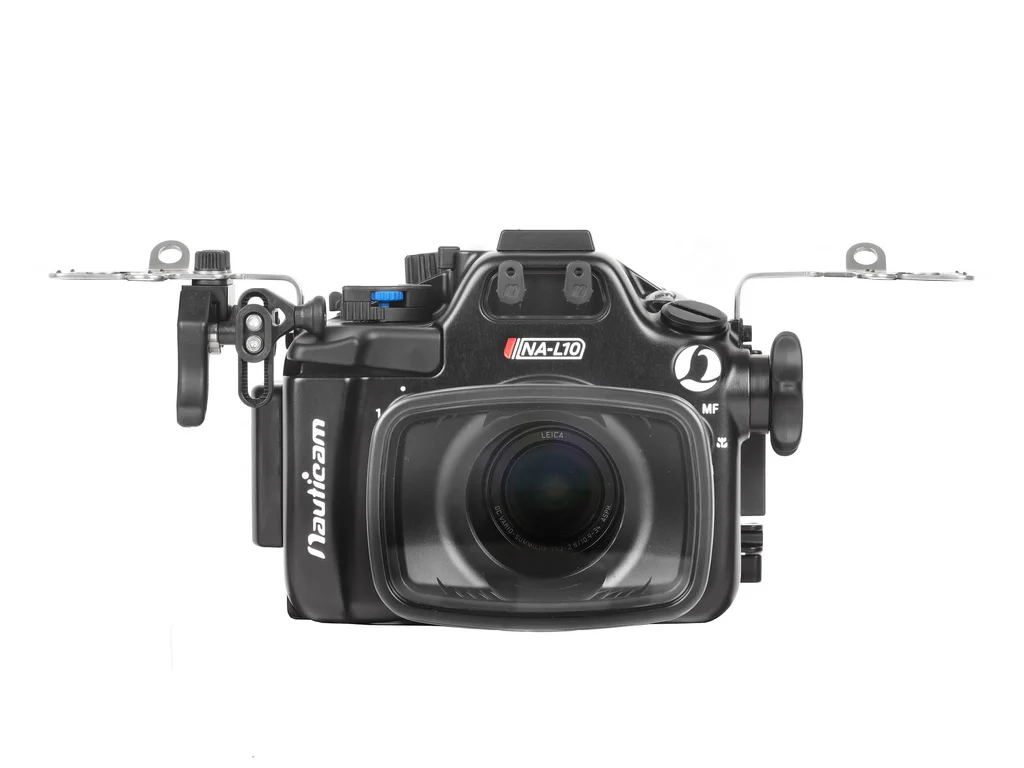

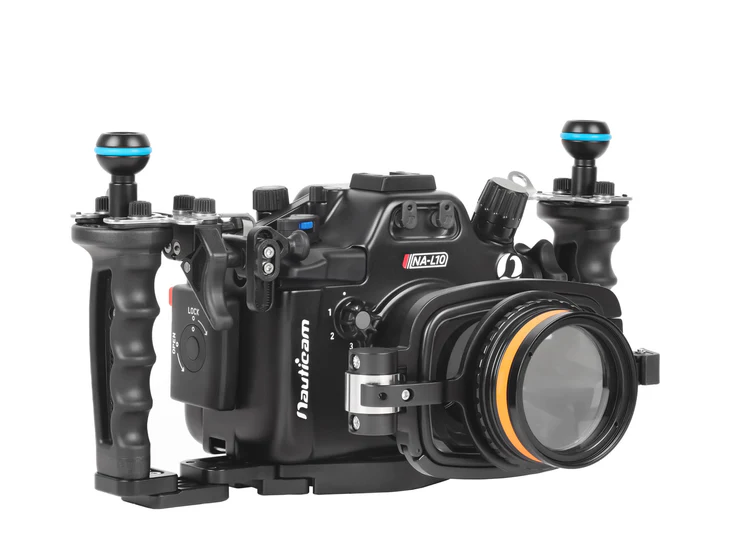

The Nauticam NA-L10 is a rugged, machined aluminum underwater housing engineered specifically for the Panasonic Lumix L10. True to the legacy of any Nauticam housing, the NA-L10 prioritizes "Mission Control" ergonomics by placing all essential camera parameters directly at your fingertips. Controls are strategically positioned where your hands naturally rest on the optional handles, allowing for seamless setting adjustments without awkward reaches or taking your eyes off the marine life.

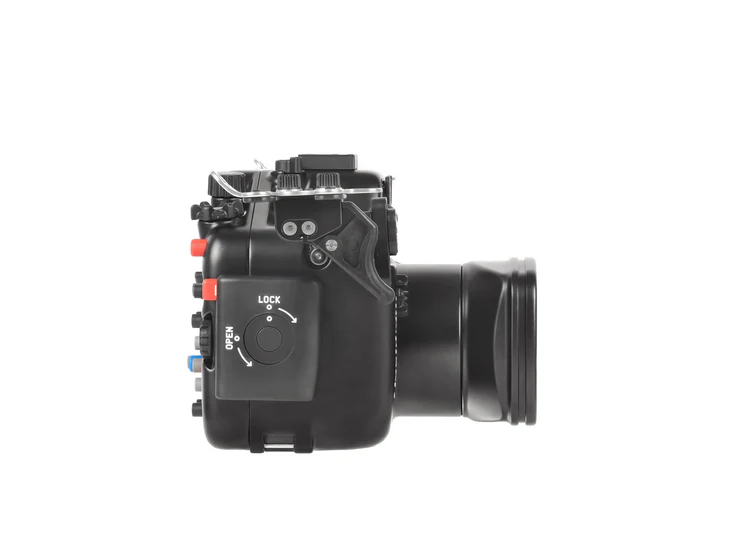

This compact nauticam underwater housing inherits professional-tier design elements, including a rotary housing lock for fast battery or media changes and integrated handle brackets with an extended shutter release. For maximum capability out of the box, shooters can choose between the standard configuration or a comprehensive Pro Package that includes a tray, handles, and a pre-installed M16 vacuum valve.
Key Performance Features:
- Premium N50 Port System: Connects seamlessly with Nauticam’s high-end water-contact optics. Expand your field of view up to 130° with the WWL-1B and WWL-C wide-angle lenses, or shoot crisp, high-magnification detail using the CMC-1, CMC-2, or MFO-1 macro tools.
- Smart Vacuum & Leak Detection: Shipped as standard equipment, this temperature-compensated electronic system utilizes a color-coded LED to constantly monitor water-tight integrity. It eliminates false alarms from temperature shifts and features an audible/visual alert if water intrusion is detected. (Note: The required M16 vacuum valve is pre-installed in the Pro Package or available separately for standard housings).
- Optical Flash Triggering: Supports rapid fiber-optic strobe firing when paired with the optional Mini Flash Trigger (NAU-26309), ensuring reliable lighting on action-packed dives.
Nauticam NA-L10 Housing Specs at a Glance
Specs and compatibility details checked against Nauticam’s official NA-L10 product information.
Compatibility Check
Works With, Requires, and Optional Gear
Works With
- Panasonic Lumix L10 camera body
- Nauticam N50 port system
- N50 standard port included with the housing
- N50 wet wide-angle and macro workflows when configured with the correct port, bayonet, or M67 holder
- Optical strobe triggering with the compatible Nauticam Mini Flash Trigger
Requires
- Panasonic Lumix L10 camera
- Correct N50 port or wet optic configuration for your shooting style
- Strobe arms, clamps, and fiber optic cables if using external strobes
- Vacuum valve to use the vacuum check function on standard configurations where the valve is not included
Optional Gear

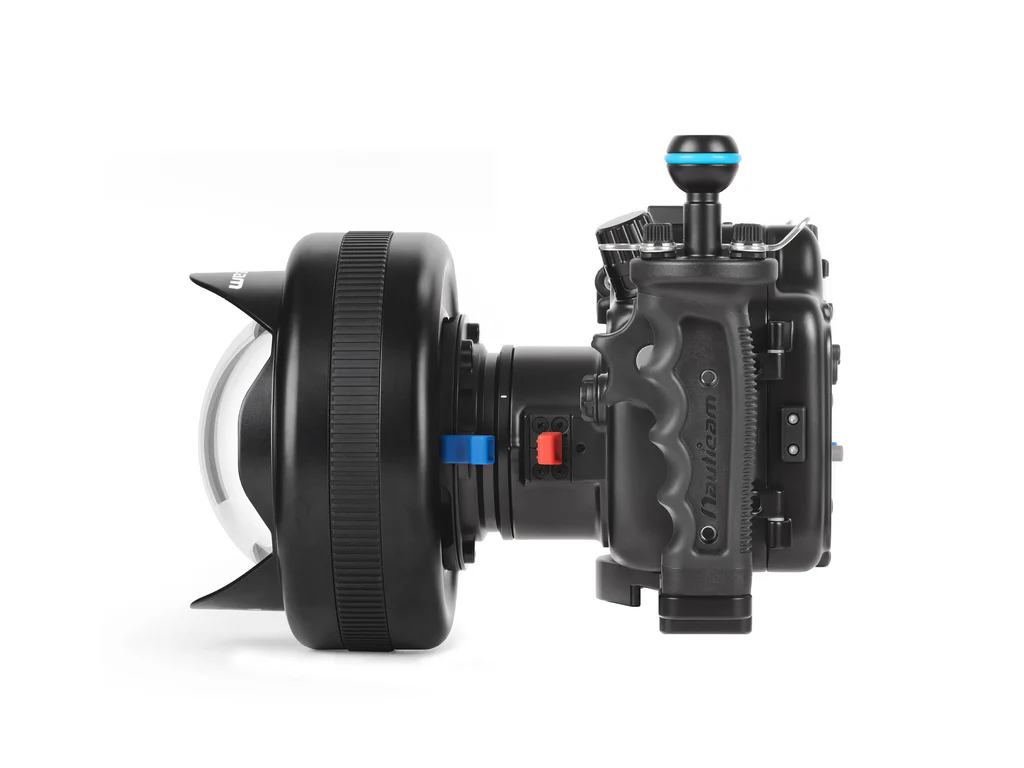

- WWL-1B or WWL-C for wide-angle reef and big-animal scenes
- CMC-1, CMC-2, or MFO-1 for close-focus and macro work

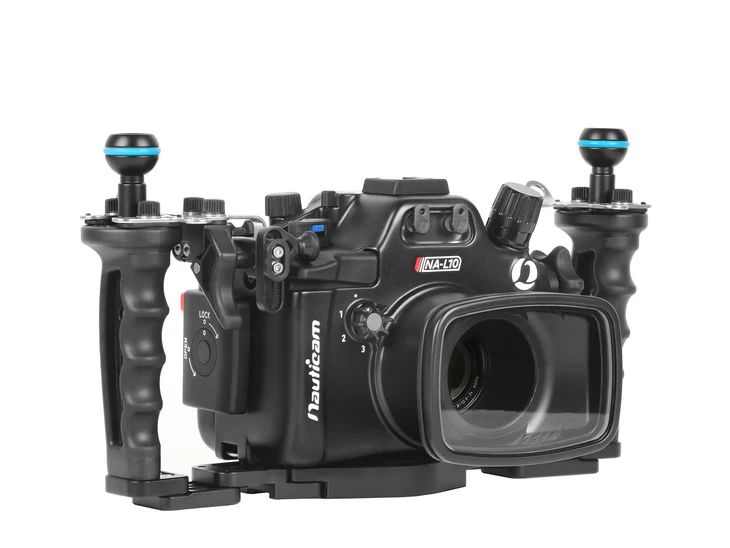

- Flexitray II, right handle, and buoyancy arms for a balanced shooting platform
- LCD magnifier attachment rails and magnifier for critical focus work
Compatibility varies by system — contact Bluewater Photo to confirm your setup.

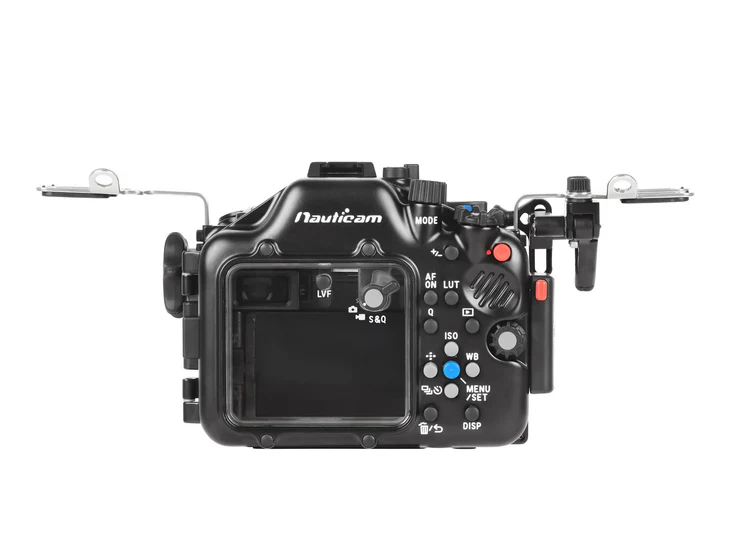

Ergonomic control layout for real dives
Underwater, the best control is the one you can reach without taking your eye off the subject. Nauticam’s strength is placing important controls where your hands naturally sit on the rig, which matters when a turtle turns toward you or a jawfish opens its mouth for one second.
- Fast access to key camera functions
- Better handling with optional tray and handles
- Useful for gloves, current, and close-focus work
- Reduces missed shots caused by hunting for buttons
N50 port support for macro and wide-angle flexibility
The N50 mount is what makes this more than a simple compact camera housing. Nauticam’s professional water-contact optics deliver the highest underwater image quality. The WWL-1B and WWL-C offer wide-angle coverage up to 130°, while the MFO-1, CMC-1 and CMC-2 offer exceptional macro capabilities.
- N50 standard port for compact everyday shooting
- Short port options for WWL-1B or WWL-C wide-angle setups

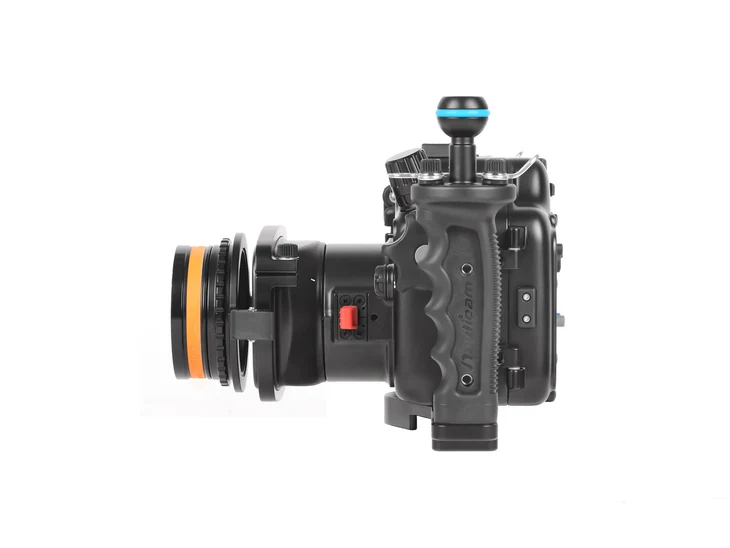

- M67 flip holder support for CMC and MFO macro tools
- Good upgrade path as your underwater photography develops
Vacuum check and leak detection workflow
A vacuum system does not replace good o-ring habits, but it gives you one more layer of confidence before giant-striding with a camera inside the housing. For traveling photographers and liveaboard divers, that peace of mind matters. The Nauticam vacuum check and leak detection system is shipped with NA-L10 as standard equipment.
- Integrated vacuum check and leak detection electronics
- Visual and audible leak warning system
- Vacuum valve required for vacuum check operation on standard setups - M16 Vacuum Valve II
- Pro Package includes the valve pre-installed
Recommended Accessories
Common add-ons for the NA-L10 housing
For optical strobe triggering. Arms and clamps
Build a stable strobe or light system. Flash Trigger
Mini Flash Trigger for NA-GH5/G9/S1R/S1H/GH6/L10 N50 ports
Match your wide or macro lens setup. Wet lenses
WWL, CMC, and MFO options. Vacuum valve
Recommended for pre-dive seal checks. Trays and handles
Improve stability and control underwater. O-rings and maintenance
Keep the housing travel-ready.
Why Buy from Bluewater Photo
Support from underwater photographers, not a generic camera store
Nauticam is known in underwater photography for durable aluminum housings, precise control layouts, and expandable port systems. The difference at Bluewater Photo is that we help you configure the whole system: housing, ports, wet lenses, strobes, buoyancy, travel spares, and maintenance workflow.
Content reviewed by Bluewater Photo staff, recognized as the #1 online retailer specializing in underwater photography and scuba diving equipment, with real-world experience supporting, selling, and configuring underwater camera systems.
Ready to build your Nauticam L10 system?
Expert support from underwater photographers.
Need to confirm ports, wet lenses, or strobes? Contact Bluewater Photo before ordering.
Specifications
Nauticam NA-L10 Technical Details
Build
- Housing type: aluminum underwater housing
- Dimensions: 186mm W x 132mm H x 159mm D
- Weight in air: 1.46kg
- Buoyancy in water: -0.22kg including camera with battery
- Depth rating: 100m
Imaging / Ports
- Port mount: N50
- Included port: N50 Standard Port
- Wide-angle options: WWL-1B or WWL-C with compatible N50 port setup
- Macro options: CMC-1, CMC-2, or MFO-1 with compatible holder setup
- Exact field of view depends on port and wet lens configuration
Controls / Safety
- Access to key Panasonic Lumix L10 camera controls
- Integrated leak detection electronics
- Vacuum check electronics included
- Vacuum valve required for vacuum check operation unless included in selected package
- Moisture alarm battery: Panasonic CR-2032, pre-installed
Included Items
- NA-L10 Housing with N50 Standard Port
- Two plugs for optical fiber cable mount
- Spare o-ring, lubricant, and o-ring removal tool
- Set of Allen keys
- Handle brackets and shutter release extension
- Padded housing bag and shoulder strap
Recommended Accessories
- 25625 M16 Vacuum Valve II (Pushbutton Release)
- 26309 Mini Flash Trigger for NA-GH5/G9/S1R/S1H/GH6/L10 (from SN A573875)
- 26216 Universal Optical Fiber Cable
- 25133 LCD Magnifier Attachment Rails for NA-L10
- 25106 LCD Magnifier with Dioptric Adjustment
- 25311 Strobe mounting ball for cold shoe
- 25312 Light mounting stem for cold shoe
- 38702 N50 3.5'' acrylic dome port (Zoom Range:24-75mm)
- 38703 N50 Short Port 25 with Bayonet Mount (Use with WWL-1B)
- 38704 N50 Short Port 22 with Bayonet Mount (Use with WWL-C or WWL-1B)
- 25107 M67 flip diopter holder for NA-LX100/L10 standard port (use with CMC-1, CMC-2 and MFO-1)
Compatible tray:
- 71207 Flexitray II with left handle (with 2pcs 1/4'' screws)
- 71208 Adjustable right handle II (for Easitray II &Flexitray II)
- 71209 Flexitray plate II W with left handle (with 2 tripod holes)
- 36316 Hand strap for Mirrorless IL camera & compact camera housing (Standard)
Lanyard (for use with Housing Tray and handle brackets)
- 25227 27cm lanyard with shackles
- 25411 18cm lanyard with 2 snap hooks
Wet Lenses
Macro
- 81301 Compact Macro Convertor 1 (CMC-1, 4.5x Magnification)
- 81302 Compact Macro Convertor 2 (CMC-2, 2.8X Magnification)
- 81501 Mid-range Focus Optimizer 1
Wide-angle
- 83202 Wet Wide Lens 1B (WWL-1B) 130 deg. FOV with compatible 28mm lenses (incl. float collar)
- 83203 Wet Wide Lens Compact (WWL-C) 130 Deg. FOV with Compatible 24mm Lenses (incl. float collar)
N50 Port Chart for the NA-L10
- 38702 N50 3.5'' acrylic dome port (Zoom Range:24-75mm)
- 38703 N50 Short Port 25+WWL-1B (Lens FOV 75-57º, Converted FOV. 130-99º, Zoom Range 28-40mm)
- 38704 N50 Short Port 22+WWL-C (Lens FOV 84-72º, Converted FOV. 130-112º, Zoom Range 24-30mm)
- 38704 N50 Short Port 22+WWL-1B (Lens FOV 75-72º, Converted FOV. 130-125º, Zoom Range 28-30mm)
- 90181 Standard port + 25107 M67 flip diopter holder (for MFO-1, CMC-1, CMC-2)
- NA-L10 Housing with N50 Standard Port
- 2x Plugs for Optical fiber cable mount
- Panasonic CR-2032 Battery (pre-installed for moisture alarm)
- Spare O-ring (PN 90131), lubricant and removal tool
- Set of Allen Keys
- Handle Brackets and Shutter Release Extension
- Padded housing bag and shoulder strap
FAQ
Nauticam Panasonic Lumix L10 Housing Questions
Is this housing compatible with my Panasonic Lumix L10?
Yes, the NA-L10 is designed for the Panasonic Lumix L10 camera. It is not a universal housing, so confirm your exact camera model before ordering.
What port system does the NA-L10 use?
The housing uses Nauticam’s N50 port system and includes an N50 Standard Port. Alternate N50 ports may be needed for WWL or macro wet lens configurations.
Can I use strobes with this Nauticam housing?
Yes, optical flash triggering is available with the compatible Nauticam Mini Flash Trigger and fiber optic cables. Strobes, arms, clamps, and cables are purchased separately.
Does the housing include a vacuum system?
The NA-L10 includes vacuum check and leak detection electronics. A vacuum valve is required to perform a vacuum test unless it is included with the selected package.
Is the NA-L10 good for macro photography?
Yes, it can be configured for macro with compatible Nauticam close-up optics such as CMC or MFO options. The exact holder and port setup should be confirmed before purchase.
Is it good for wide-angle reef shooting?
Yes, with the correct N50 short port and compatible WWL option, the system can be built for wide-angle reef and big-subject work. Contact Bluewater Photo to match the optic to your intended shooting style.
How should I maintain the housing after diving?
Rinse it thoroughly in fresh water, operate the buttons and dials while submerged in rinse water, dry it before opening, and inspect the main o-ring before every dive day. Use the vacuum test as an additional pre-dive check.
