Nauticam SmallHD 502 Bright Monitor Housing
The Nauticam NA-502B Monitor Options:
- NA-502B-H: HDMI 1.4 Input Connection
- NA-502B-S: HD-SDI Input Connection
When shooting video underwater the use of a larger external monitor can make a huge difference. Composing your shot with a clear, bright view of the subject, and having better information on exposure, color and lighting levels can be the difference between good footage and incredible footage.
Everything Included, Simple Drop In Design
With simple set up - the Monitor drops into the housing and all cables & bulkheads needed for connecting the monitor are included - this is an easy and perfect addition to your underwater video rig. The SmallHD 502 monitor is the best and brightest on the market, making it easy to view even when shooting on or near the surface on a bright day.
Nauticam has been known to provide top notch and high quality aluminum underwater housings. They also have a reputation to design underwater housings with great ergonomics. Their housings are built from aircraft grade aluminum which makes it durable, robust and built to last.
Rugged, Easy Joystick Navigation
The Nauticam NA-502B housing features the rugged build quality and advanced manufacturing expertise Nauticam users expect. The joystick navigation system used by the 502 Bright monitor is translated to four directional arrows, a center select button, and the dedicated “back” button. The interface is simple, but elegant, and perfectly suited for the underwater environment.
The form factor of 502 Bright monitor is perfectly suited for an underwater housing, with HDMI / HD-SDI cables nestled between two readily available Canon LP-E6 Batteries that power the monitor.
HDMI and HD-SDI are both supported by a single housing, providing an extremely broad range of camera support in a single underwater monitor system.
The SmallHD 502B Monitor can also be used as a passthrough monitor using the passing SDI or HDMI to the surface monitor*. The housing features an extra M16 bulkhead that can accomodate an additional cable. For the HDMI version, if also features a cross-conversion feature meaning an HDMI input from the camera can be converted to an HD-SDI signal by the monitor and can be passed through to another monitor.
NOTE: Unlike previous 502 models the 502 Bright is only available in one configuration that includes both HD-SDI and HDMI, so use the menu above to choose the housing model that is appropriate for your camera, i.e. 17920 for HDMI and 17921 for HD-SDI.

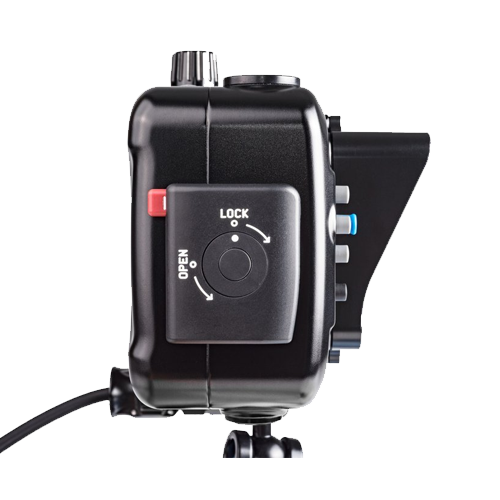

Rotary Locking Latch:
An oversized rotary latch securely seals the housing and prevents accidental opening of the housing. Simply drop the monitor into the housing and it's ready to use.
The housing includes a removable monitor shade which provides better visibility in bright conditions. It can easily be installed using 4 small screws.

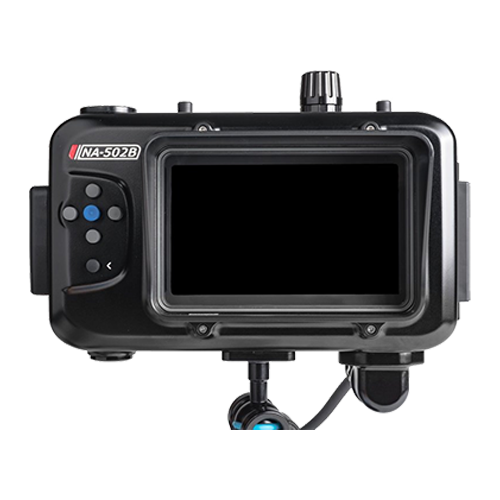

The housing provides access to all monitor controls which includes the joystick and a dedicated back button.
Vacuum Check and Leak Detection System:
The housing includes a M16 Vacuum valve and leak detection system. This provides you the peace of mind that your monitor is securely sealed. A temperature compensated monitoring circuit with LED indicator provides constant feedback about vacuum status. The green led means the system is safe to dive!

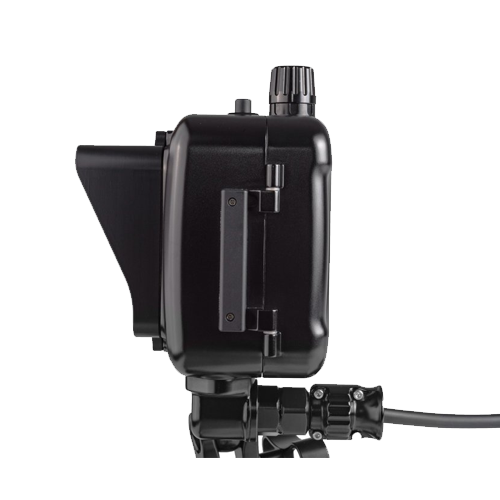

Drop In Design:
The 502 Bright monitor easily drops into the housing and is secured with 2 rotating latches. Cable routing is simple as is direct access to the batteries without having to remove the monitor from the housing. ALL CABLES NEEDED TO CONNECT THE MONITOR TO YOUR HOUSING ARE NOW INCLUDED!
What's In The Box:
- 17921 NA-502B Monitor with HD-SDI Input Support
- 17916 Monitor hood for NA-501/502 Housing
- 25625 M16 Vacuum Valve II (Pushbutton Release)
- 25060 SDI cable in 0.3m length (for connection from camera to underside of SDI Bulkhead)
- 25058 M16 SDI Bulkhead
- 25072 SDI cable in 0.75m length (for connection from SDI bulkhead and 502 monitor)
- Mounting ball
- CR2032 Battery
About Small HD Monitor:
The SmallHD 502 Bright Monitor is sharp with its 441 pixel density. The monitor is capable of displaying 100% of the REC 709 color space allowing for accurate judgement of color and exposure even in bright daylight conditions.
The feel of the monitor is very similar to your smart phone, which makes it very easily to be familiar with. The joystick is used to flip through the video pages. Each page accepts multiple image analysis tools, configured by the user for their individual needs.
