Modular Technical & Underwater Imaging Light

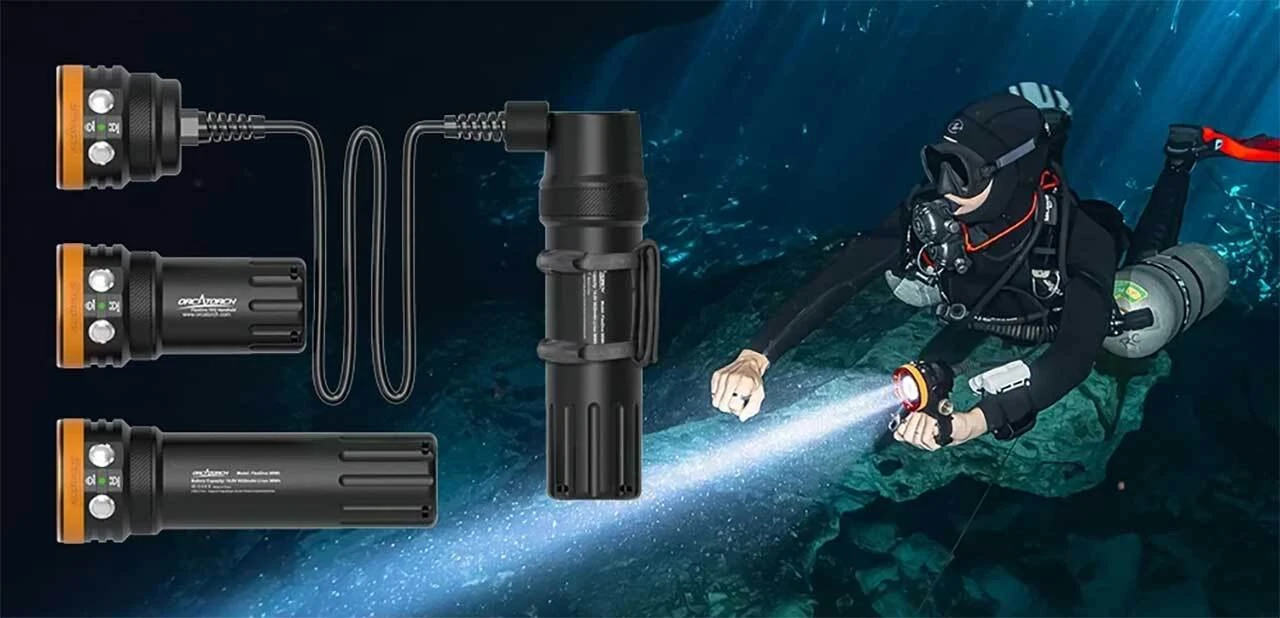

OrcaTorch 8000lm FlexDive Modular Dive Light System
One light platform for technical diving, wreck and cave exploration, underwater photography and video—with an 8° spot, 150° flood and interchangeable battery configurations.
The OrcaTorch FlexDive is a premium modular dive light system built for divers who want one lighting platform to perform several jobs. Its 8° spot beam handles navigation, signaling and penetration, while its ultra-wide 150° flood is designed for broad illumination and underwater photo or video use.
The main advantage is flexibility: the light head, battery and canister cable are separate system components, allowing you to configure the FlexDive for handheld, video or canister-style use instead of buying a completely different light for each type of diving.
- Best for: technical divers, wreck and cave divers, serious recreational divers, underwater photographers and videographers.
- Main advantage: modular B49/B98 battery platform that can be reconfigured as your diving or imaging setup changes.
- Beam system: dedicated 8° spot and 150° flood beams can be used independently or together.
- Maximum output: up to 8,000 lumens when both spot and flood are operated on their high settings simultaneously.
- Camera compatibility: continuous lighting does not require electronic communication with your camera or housing; physical mounting hardware varies by configuration.
- Tradeoff: the FlexDive is larger and more complex than a compact recreational torch, so divers who only need a simple narrow-beam primary may prefer a dedicated handheld light.
OrcaTorch FlexDive Quick Specs
MODULAR PLATFORM
Build the Light Around the Dive
The light head, battery pack and cable are independent components. That means you can move between a compact battery arrangement and a higher-capacity canister-style configuration without replacing the complete lighting system.
- Swap batteries between dives instead of waiting for the entire light to recharge.
- Choose B49 when compact size is the priority.
- Choose B98 when longer runtime and capacity matter more.
- Expand the system as your diving or imaging needs grow.
DUAL-BEAM CONTROL

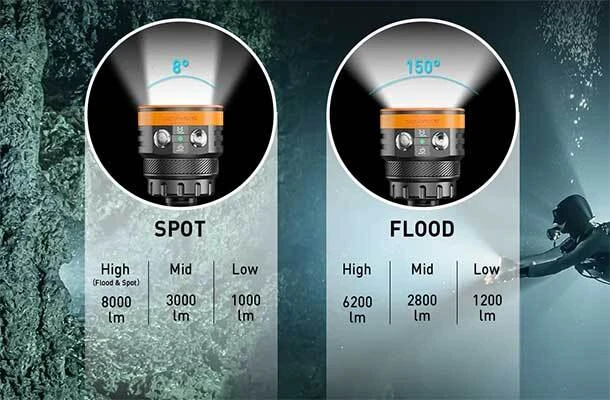

8° Spot for Penetration. 150° Flood for Coverage.
A narrow technical beam and an ultra-wide imaging beam solve very different problems underwater. FlexDive puts both in the same head and lets you select the lighting pattern that makes sense for the situation.
- 8° spot: signaling, navigation, wreck penetration and inspecting distant details.
- 150° flood: broad reef illumination and underwater photography or video.
- Combined: operate both beams on high for the rated 8,000-lumen maximum output.

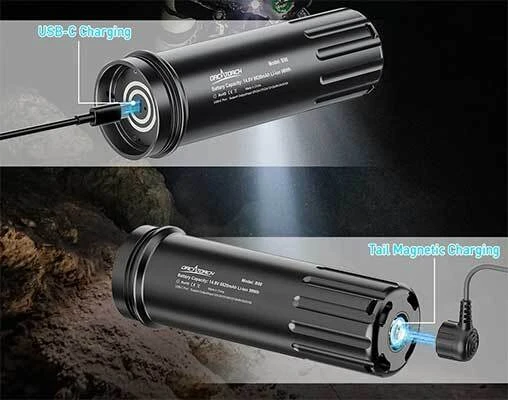

B49 & B98 BATTERY OPTIONS
USB-C, Magnetic Charging and Power-Bank Functionality
Both FlexDive batteries support USB-C input/output as well as OrcaTorch's magnetic charging system. They can also function as portable power banks between dives.
- B49: 14.8V, 3310mAh, 49Wh.
- B98: 14.8V, 6620mAh, 98Wh.
- B49 USB-C charge time: approximately 3 hours.
- B98 USB-C charge time: approximately 6 hours.
- Magnetic charging is approximately 2.5 hours for B49 and 5 hours for B98.
Airline lithium-battery rules vary by carrier and jurisdiction. Always confirm current airline requirements before travel.
OrcaTorch FlexDive vs Other Dive Lights
The best choice depends less on maximum lumen output and more on whether you need technical penetration, video coverage or the flexibility to do both.
| Product | Max Output | Beam | Best Use | System Style |
|---|---|---|---|---|
| OrcaTorch FlexDive | 8,000 lm combined | 8° spot + 150° flood | Hybrid technical diving + photo/video | Modular handheld / video / canister platform |
| OrcaTorch D920 | 5,000 lm | 9° spot | Handheld primary, cave, wreck and low visibility | Dedicated cordless handheld |
| OrcaTorch D630 V2.0 | 4,600 lm | 7° spot | Dedicated technical and overhead diving | Traditional canister light |
| OrcaTorch D950V 2.0 | 10,500 lm | 120° flood | Dedicated underwater video | Dedicated wide-beam video light |
Our take: choose the D920 or D630 V2 when a focused technical beam is the main priority. Choose the D950V when dedicated video lighting matters more than versatility. Choose the FlexDive when you want one premium system capable of switching between these roles.
Why Buy Your OrcaTorch FlexDive From Bluewater Photo?
Lighting systems become much easier to buy when someone checks the entire configuration—not just the light itself. Our team works with underwater housings, arms, clamps, trays, video lights and technical dive equipment every day and can help confirm exactly what your system needs.
Content reviewed by Bluewater Photo staff, recognized as the #1 online retailer specializing in underwater photography and scuba diving equipment, with real-world experience supporting, selling, and configuring underwater camera systems.
- Orcatorch D530V 1200 Lumen Underwater Video Light — Delivers bright, high-quality light for macro and close-up underwater photography.
- OrcaTorch ZD710 MKII Dive Light — engineered to meet the diverse lighting needs of underwater explorers.
- Weefine WF095 Smart Snoot Video Light Kit — includes filters and a snoot tube for photography techniques
- Weefine WF103 Smart Focus 2600 Focus Light — compact, high-intensity underwater focus light engineered for underwater macro photography
Learn More — Guides & Articles
- Our Top Picks for UW Focus Lights in 2026 — some insight to the latest focus lights for macro photography
- Best Underwater macro lens — best diopter lenses to focus on small uw creatures
- Canon RF 100mm f2.8 Review — Canon's top choice for macro photography
- Sony's 90mm f2.8 macro lens review — Sony's powerhouse macro lens.

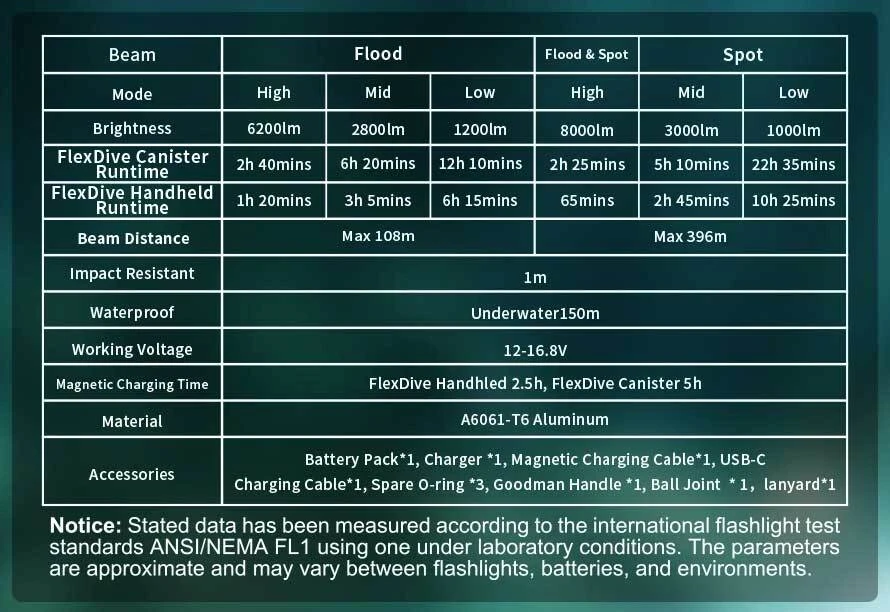

OrcaTorch FlexDive Specifications
Lighting
- Maximum combined output: 8,000 lumens
- Flood beam: 150°
- Flood output: up to 6,200 lumens
- Spot beam: 8°
- Spot output: up to 3,000 lumens
- Spot and flood can be controlled independently
- Constant-output design
B49 Battery
- Capacity: 14.8V / 3310mAh / 49Wh
- USB-C input/output supported
- USB-C charge time: approx. 3 hours
- Magnetic charge time: approx. 2.5 hours
- Can function as a power bank
B98 Battery
- Capacity: 14.8V / 6620mAh / 98Wh
- USB-C input/output supported
- USB-C charge time: approx. 6 hours
- Magnetic charge time: approx. 5 hours
- Can function as a power bank
Build & Diving
- Depth rating: 150 m / 492 ft

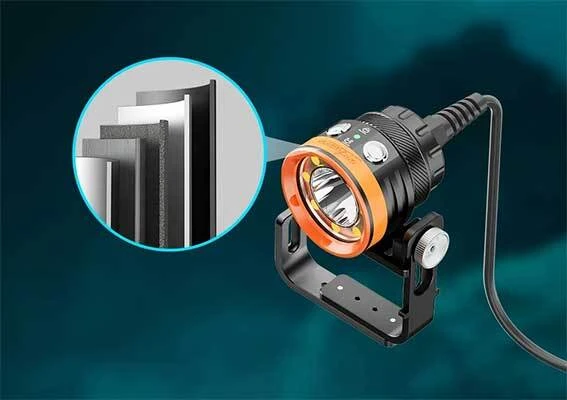

- Modular light head and battery system
- Safe-lock function

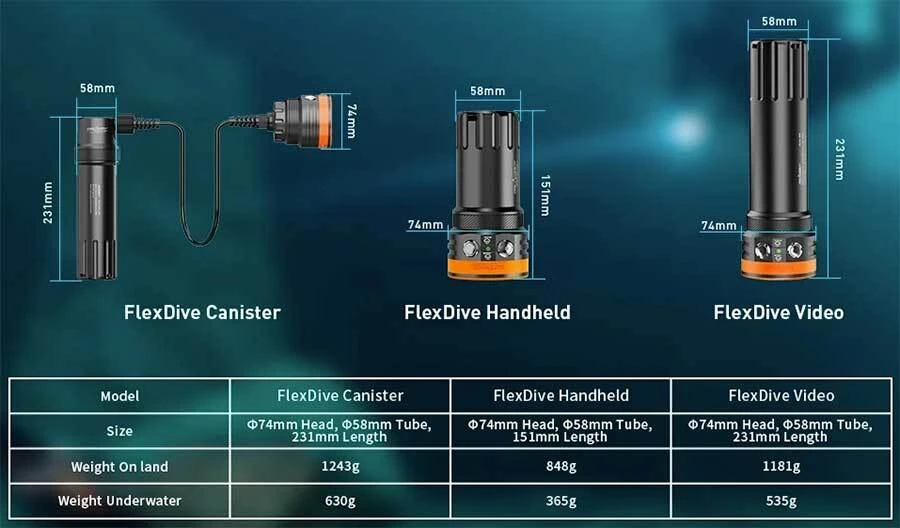

- Handheld, video and canister configurations
- FlexDive Handheld
- B49 Battery
- H620 Goodman handle
- Carry Case
- Ball joint
- Charger & Magnetic Charging Cable
- USB-C to C charging cable
- Lanyard
- Spare O-rings (3)
FlexDive Video
- FlexDive Video
- B98 Battery
- H620 Goodman handle
- Carry Case
- Charger & Magnetic Charging Cable
- USB-C to C charging cable
- Lanyard
- Spare O-rings (3)
FlexDive Canister
- FlexDive Canister
- B98 Battery
- H620 Goodman handle
- Carry Case
- Ball joint
- Charger & Magnetic Charging Cable
- USB-C to C charging cable
- Lanyard
- Spare O-rings (3)
OrcaTorch FlexDive FAQ
How does the OrcaTorch FlexDive reach 8,000 lumens?
The rated 8,000-lumen maximum is achieved when the 8° spot and 150° flood are both operated on their high settings simultaneously. The individual beams can also be used separately.
Can I use the FlexDive as an underwater video light?
Yes. Its 150° flood beam is specifically suited to broad underwater illumination and photo/video use. For large wide-angle scenes, two lights will generally give more even coverage and better positioning control.
Can I use the FlexDive for cave or wreck diving?
Yes. The dedicated 8° spot is designed for signaling, navigation, penetration and detailed inspection, while the system is depth-rated to 150 meters.
What is the difference between the B49 and B98 batteries?
The B49 is a 49Wh pack intended where compact size matters, while the B98 provides 98Wh for longer-duration configurations. Both support USB-C and magnetic charging and can provide USB-C power output.
Can the FlexDive batteries be used as power banks?
Yes. OrcaTorch specifies USB-C input/output on both the B49 and B98, allowing them to supply power to compatible devices during surface intervals.
Will the FlexDive work with my underwater camera housing?
The light itself does not require electronic communication with the camera or housing. Physical mounting varies by rig, so contact Bluewater Photo if you need help choosing the correct ball joint, arm, clamp or tray components.
Does the FlexDive gradually become dimmer as the battery drains?
OrcaTorch describes the FlexDive as a constant-output system designed to maintain stable brightness rather than gradually dimming throughout normal operation.
Is the FlexDive better than a dedicated dive light?
It depends on how you dive. A simple dedicated light can be smaller and less expensive, while FlexDive makes the most sense for divers who will genuinely use its technical spot, wide flood and interchangeable configurations.
