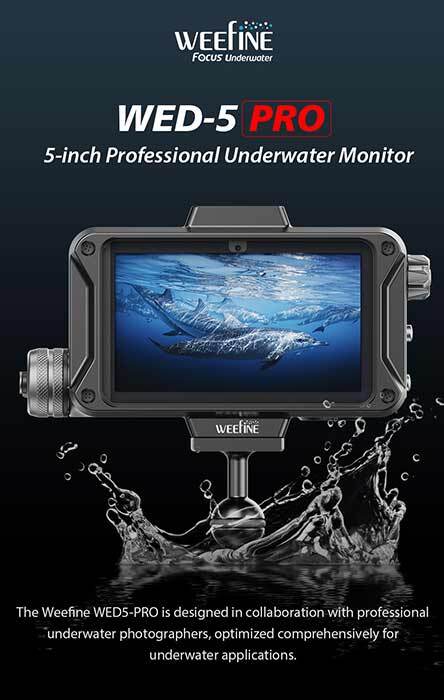

Weefine WED-5 PRO Underwater Monitor
"Enhance your underwater filmmaking with precision, durability, and unmatched brightness.
Order the Weefine WED-5 PRO today and experience the ultimate in professional underwater monitoring."
The Weefine WED-5 PRO Underwater Monitor is a professional-grade underwater monitor developed in collaboration with experienced underwater photographers. Designed for use in extreme marine environments, this Weefine monitor combines a compact form factor with advanced imaging tools that meet the needs of both videographers and photographers.
Engineered for underwater applications, the Weefine WED-5 delivers clear, accurate visuals in challenging lighting conditions. Its 5-inch A-grade HD LCD panel features 1920×1080 resolution, 443 PPI pixel density, and the Rec.709 color gamut, providing exceptional color accuracy for monitoring your footage in real time. With 3,200 nits of ultra-high brightness and patented auto-backlight adjustment, it remains visible even in direct sunlight underwater, improving focus and framing accuracy during dives.
The Weefine monitor housing integration ensures compatibility with major camera brands. It supports HDMI 4K/60fps input and offers both input and output signal interfaces, making it adaptable to multi-camera setups. The monitor is waterproof up to 100 meters (330 ft), making it suitable for technical divers, underwater cinematographers, and scientific researchers working at depth.
Key Features of the Weefine WED-5 PRO
- Display: 5-inch A-grade HD LCD, 1920×1080 resolution, Rec.709 color gamut, 443 PPI
- Brightness: 3,200 nit (MAX) with auto-backlight control
- Underwater UI: Optimized interface with side-mounted dial + button controls
- Focus & Exposure Tools: 3D-LUT, peaking focus, false color, waveform, brightness histogram, safety markers
- Build Quality: Precision-machined aluminum alloy with hard-anodized finish, corrosion-resistant in seawater
- Battery: High-capacity 21700 (3.6V 5000mAh), 90+ minutes runtime, quick swap design
- Connectivity: HDMI 2.0 Type A/C/D cables included, M24/M16 waterproof adapters
- Mounting Options: Top and bottom ball mounts for flexible positioning
- Waterproof Rating: 100m / 330ft
| Feature | WED-5 PRO | WED-7 PRO |
|---|---|---|
| Screen Size | 5 inches | 7 inches |
| Resolution | 1920×1080 pixels | 1920×1200 pixels |
| Pixel Density | 443 PPI | 440 PPI |
| Brightness | 3,200 nit (max) | 3,200 nit (max) |
| Contrast Ratio | 1500:1 | 1500:1 |
| Viewing Angle | 160° all around | 160° all around |
| Input Signal | HDMI 4K/60fps | HDMI 4K/60fps |
| Battery Type | 21700 (3.6V 5000 mAh) | 18650 ×2 (3400 mAh each) |
| Runtime | Approx. 90 minutes | ≈3.5 hours |
| Waterproof Depth | 100m / 330 ft | 80m / 236 ft |
| Dimensions (L×W×H) | 183.5 × 104 × 51.5 mm | 198 × 132 × 39 mm |
| Weight | 720 g (land), 250 g (underwater) | (not specified) |
| Operating Temperature | 0 °C to +40 °C | 0 °C to +40 °C |
| Storage Temperature | -20 °C to +60 °C | -20 °C to +55 °C |
Notes on the comparison:
-
WED-5 PRO offers a compact 5-inch display with high pixel density (443 PPI) and deeper waterproofing (100 m), but a shorter runtime (~90 min) on a single 21700 battery.
-
WED-7 PRO features a larger 7-inch screen with slightly higher resolution (1920×1200), significantly longer runtime (~3.5 hrs) via dual 18650 batteries, though with shallower waterproof rating (80 m).
Related Underwater Gear Categories:
| Specification | Details |
|---|---|
| Model | WED-5 PRO |
| Display Type | LCD |
| Screen Size | 5 inches |
| Resolution | 1920×1080 pixels |
| Pixel Density | 443 PPI |
| Brightness | 3,200 nit (max) |
| Contrast Ratio | 1500:1 |
| Viewing Angle | 160° all around |
| Signal Input | HDMI 4K/60fps |
| Signal Output | HDMI |
| Battery Type | 21700 (3.6V 5000mAh) |
| Runtime | Approx. 90 minutes |
| Waterproof Depth | 100m / 330ft |
| Dimensions | 183.5(L) × 104(W) × 51.5(H) mm |
| Weight | 720g (land), 250g (underwater) |
| Operating Temperature | 0°C to +40°C |
| Storage Temperature | -20°C to +60°C |
- Weefine WED-5 Pro underwater video monitor
- Ball Base Adaptor
- Silicone Sunshade
- HDMI External Cable
- M16 Adaptor for HDMI Cable
- M24 Adaptor for HDMI Cable
- USB-C charging cable
- User Manual
- Warranty Card
- WBL-12C Battery
- DD-C2, DC-B2, DA-C4 Cables
- Glass Cleaning Cloth
- Silicone Oil
- O-Ring Picker
- Spare O-rings
- Adaptor Bulkhead (M16/M24)
- Hex Wrench
What is the maximum depth rating for the Weefine WED-5 PRO?
The monitor is waterproof to 100 meters (330 feet), making it suitable for deep technical diving.
How long does the battery last underwater?
The included 21700 battery provides approximately 90 minutes of runtime, with quick-swap capability for extended shooting sessions.
Can I use custom LUTs with the Weefine WED-5 PRO?
Yes. The USB port supports custom 3D-LUT file imports for accurate color previews.
Is the Weefine WED-5 compatible with all camera housings?
It includes M24 and M16 waterproof adapters and HDMI Type A/C/D cables for broad compatibility.
Does it work well in bright sunlight underwater?
Yes. The 3,200-nit brightness and auto-backlight adjustment ensure excellent visibility even in strong sunlight at shallow depths.
