Weefine WED-7 PRO Underwater Monitor

Free Shipping: ● Free Shipping on Dive Gear $50+ or Any Order $200+! ? Free shipping for dive gear orders over $50 in the USA, to all 50 states, and free shipping on all orders over $200 to the USA and Canada . Orders generally ship same day if ordered by 11AM PST. Low international shipping rates are available, just add the item to your cart and checkout to see rates.

$1,568.00

Current Stock:

Pre-Order Now

Calculating your delivery time...

Get it by , !

Order within hours and minutes

Ship To:

Expedited Shipping Available

7" LCD Display
Resolution: 1920×1200 pixel
Waterproof rating: 80 meters / 262 feet
HDMI input: 1080P / 720P / 480P
Working hours: ~3.5 hours
Weefine Internal HDMI cables Chart per Camera Model

Description
Specifications

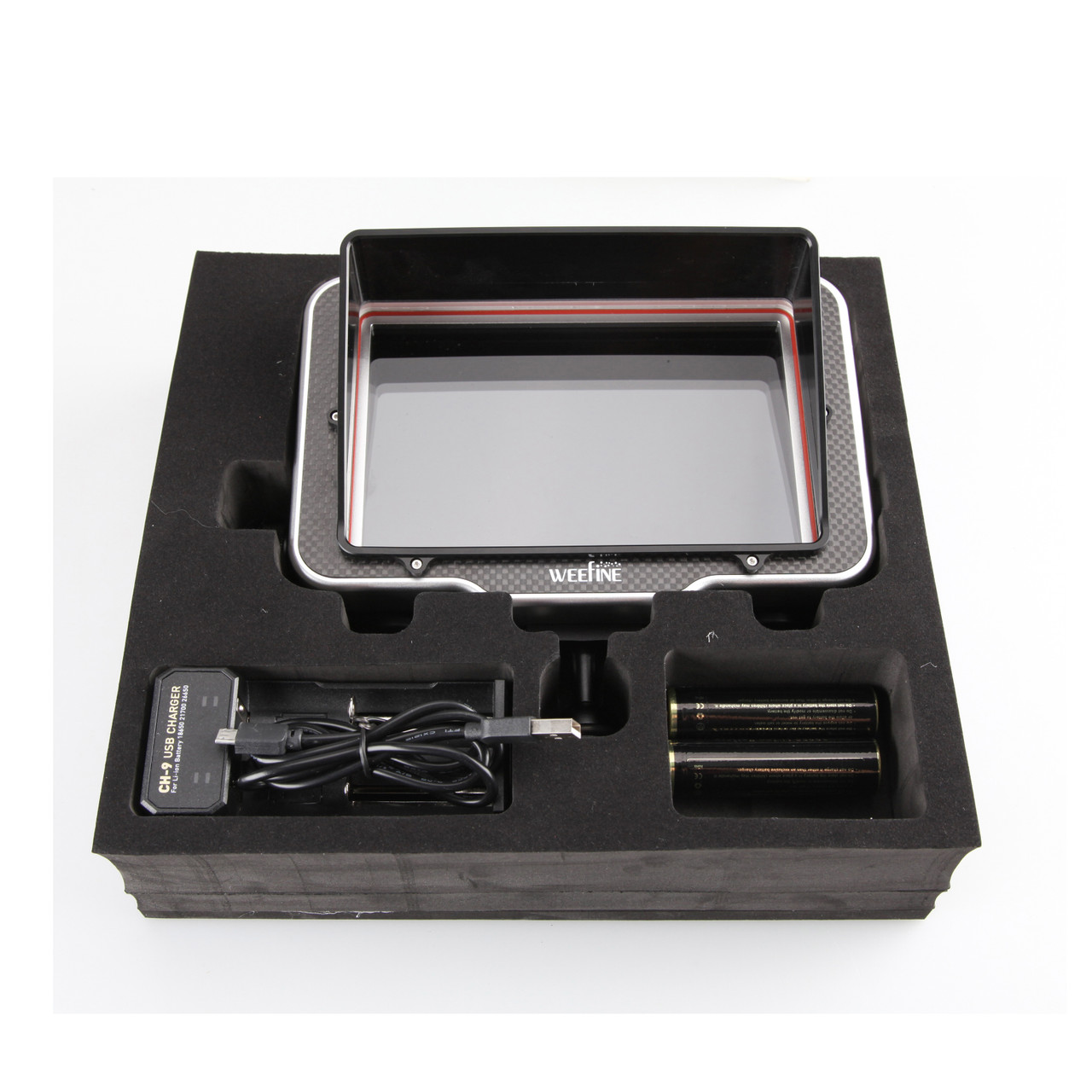

What’s in the Box
Lifetime support

Weefine WED-7 PRO Underwater Monitor

**The Weefine WED-5 PRO is the latest available monitor from Weefine.

The Weefine WED-7 Pro underwater monitor kit offers you a perfect solution for mounting your camera to a stable handle system, and then a stable mount for the WED-7 Pro monitor in order to offer a more suitable system to shoot underwater video, while allowing you to maintain a stable platform to shoot perfectly smooth underwater video.

Weefine WED-7 Pro Underwater Monitor

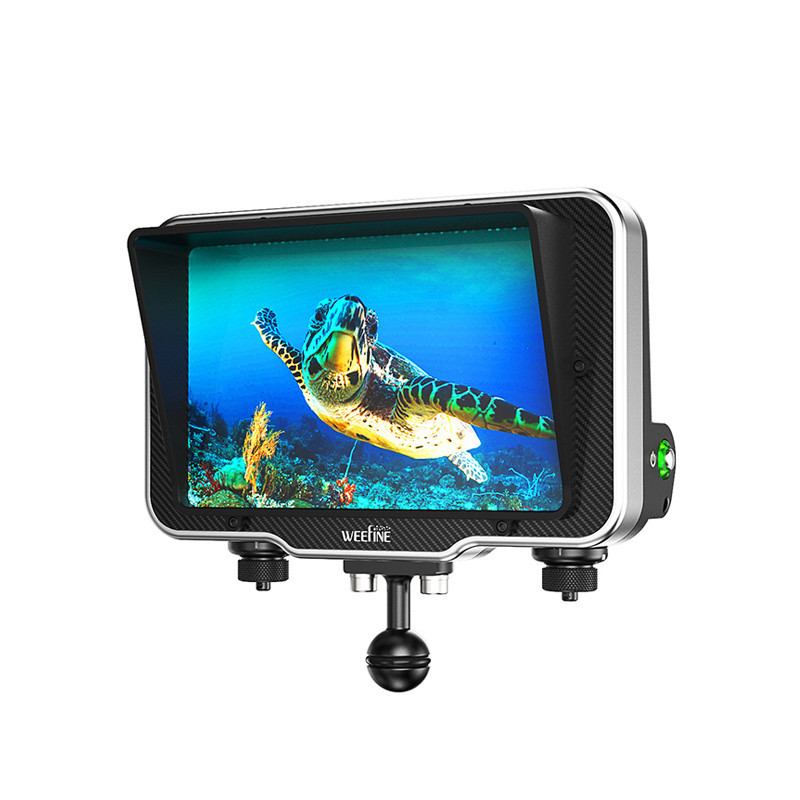

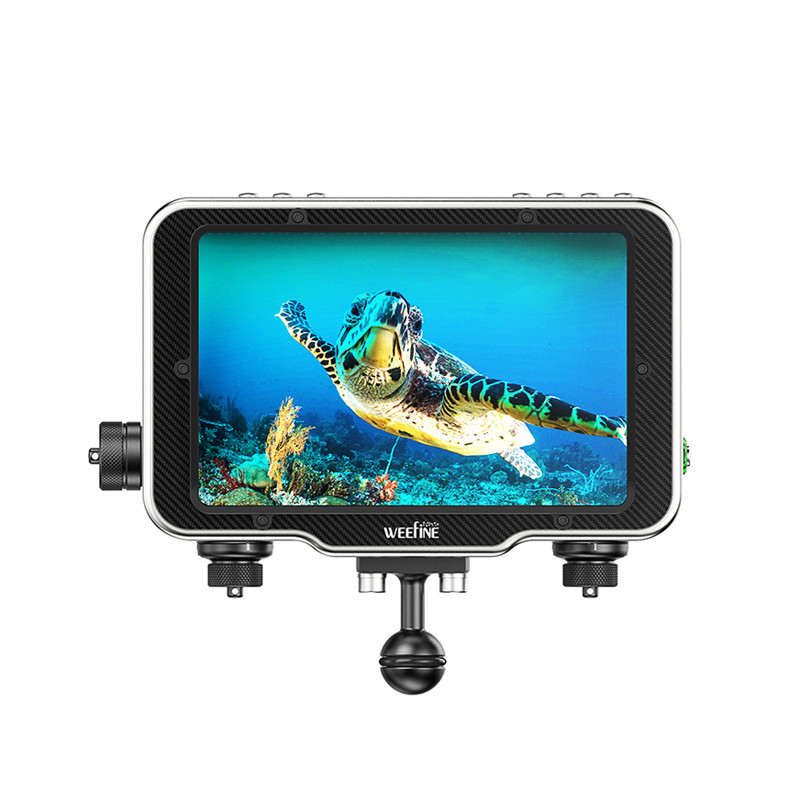

The Weefine WED-7 Pro Underwater Monitor is a 7-inch full HD monitor designed specifically for underwater photography and videography. Its carbon fiber backplate and aluminum alloy construction make it robust and resistant to corrosion. The monitor works with a range of cameras, including DSLRs, mirrorless cameras, and action cameras. It is waterproof down to 80 meters (262 feet).

The Weefine WED-7 PRO is equipped with a full HD FHD display, supports 4K HDMI input and output, and features a 7-inch HD screen with 1920×1200 resolution and 440PPI pixel density, as well as 500CD/m² brightness and 1200:1 high contrast.

It is simple to carry and store, whether you are using it at home or on the go, thanks to its lightweight and portable design. Additionally, it can make it simple for photographers to finish both work production and surveillance photography.

The Weefine WED-7 PRO is an underwater monitor in addition to an underwater housing. It comes with an M16/M24 HDMI connector converter, making it easier to use.

Specifications:

Model: WED-7
LCD Display Screen: 7-inch
Resolution: 1920×1200 pixel
Brightness: 500cd/m²
Viewing angle: 160°
Pixel density: 440 PPI
Contrast ratio: 1200:1
Colour Support: 16.77M
Input signal interface: HDMI IN
Output signal interface: HDMI OUT
HDMI input: 1080P / 720P / 480P
Power supply: 2×18650 lithium battery (3400mAh)
Operating temperature: +0~+40°C
Storage temperature: -20~+65°C
Working hours: ~3.5 hours
Waterproof rating: 80 meters / 262 feet
Dimensions: 198×132×39 millimetres
Weight: 1230g (Land) 280g (Underwater)

Weefine WED-5 PRO vs WED-7 PRO Comparison
Feature	WED-5 PRO	WED-7 PRO
Screen Size	5 inches	7 inches
Resolution	1920×1080 pixels	1920×1200 pixels
Pixel Density	443 PPI	440 PPI
Brightness	3,200 nit (max)	3,200 nit (max)
Contrast Ratio	1500:1	1500:1
Viewing Angle	160° all around	160° all around
Input Signal	HDMI 4K/60fps	HDMI 4K/60fps
Battery Type	21700 (3.6V 5000 mAh)	18650 ×2 (3400 mAh each)
Runtime	Approx. 90 minutes	≈3.5 hours
Waterproof Depth	100m / 330 ft	80m / 236 ft
Dimensions (L×W×H)	183.5 × 104 × 51.5 mm	198 × 132 × 39 mm
Weight	720 g (land), 250 g (underwater)	(not specified)
Operating Temperature	0 °C to +40 °C	0 °C to +40 °C
Storage Temperature	-20 °C to +60 °C	-20 °C to +55 °C

Notes on the comparison:

WED-5 PRO offers a compact 5-inch display with high pixel density (443 PPI) and deeper waterproofing (100 m), but a shorter runtime (~90 min) on a single 21700 battery.
WED-7 PRO features a larger 7-inch screen with slightly higher resolution (1920×1200), significantly longer runtime (~3.5 hrs) via dual 18650 batteries, though with shallower waterproof rating (80 m).
