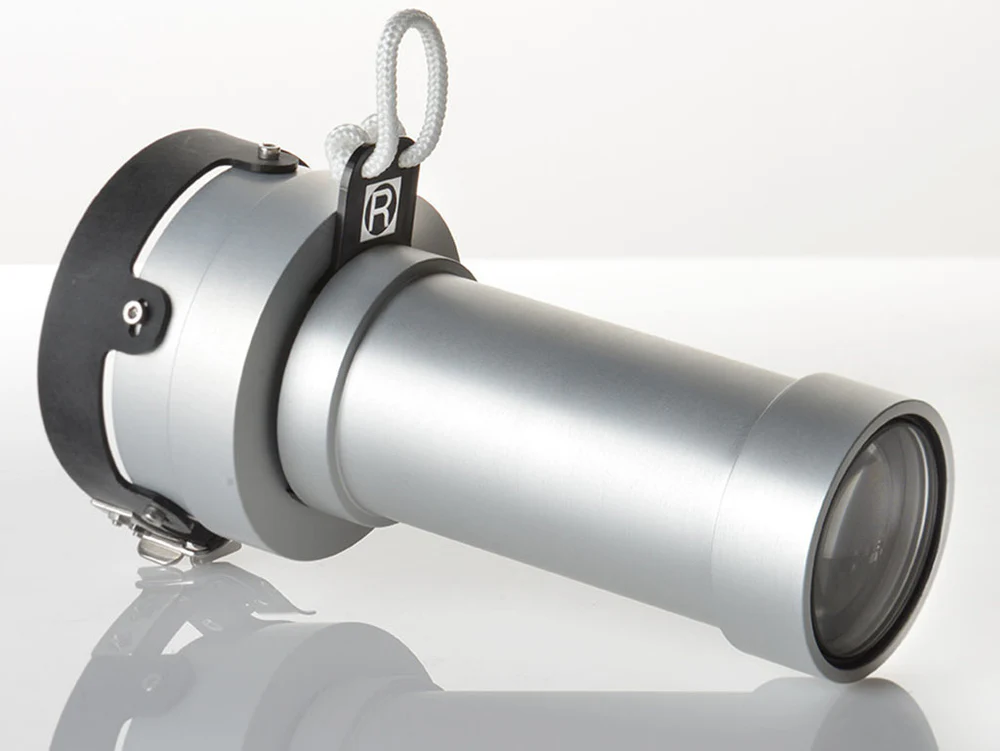

Retra LSD Ultimate for Retra Flash

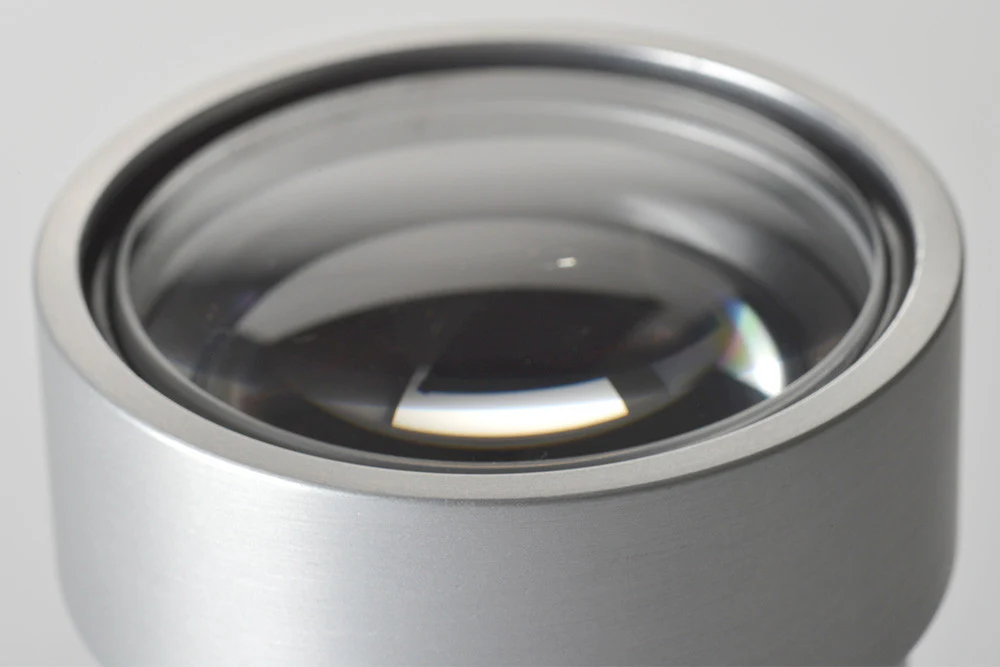

The Retra Light Shaping Device (LSD) operates similarly to an optical projector, collecting light from both the strobe flash and the integrated pilot light to generate a sharp, high-contrast beam at its specified focus distance. Unlike standard tube snoots that suffer from significant light loss and fuzzy edges, the LSD utilizes an internal optical system—comprising a custom lens element, mask, and diffuser—to shape and focus the beam without sacrificing output.

This internal layout ensures that the pilot light accurately reflects the exact shape and boundaries of the final flash exposure, allowing for precise aiming before triggering the shutter.

Core Optical & Mechanical Specifications

Housing Material: Anodized aluminum body
Physical Dimensions: 215mm length
Weight: 600g
Depth Rating: Safe down to 80 meters (-80m)
Underwater Focal Length: Approximately 175mm
In-Water Beam Diameter: Approximately 60mm at focus distance
Included Accessories: 13 standard shape masks for controlling beam geometry

The LSD Ultimate is compatible with the following strobes:

• Inon (Z-330, D200, Z-240, D2000)
• Ikelite (DS125/160/161, DS230)
• Sea&Sea (YS110, YS250, YS-D1, YS-D2, YS-D3)
• Subtronic (Alpha, Nova, 160 pro, 160 fusion)
• Seacam (SF60, SF100, SF150, SF250)
• One Uw (One 160x)
• Keldan (50º port, 4x/8x)
