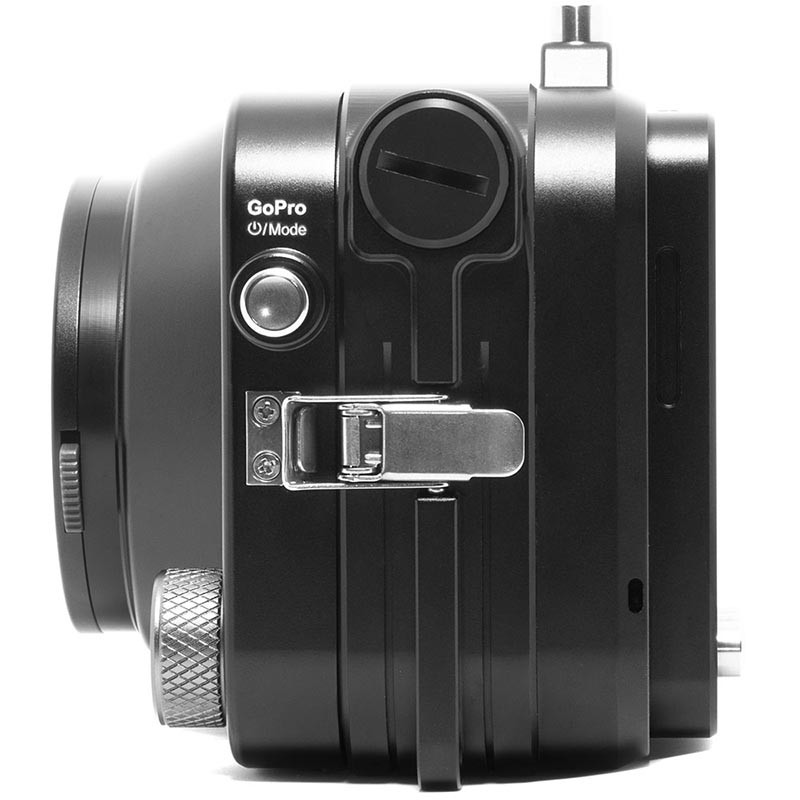

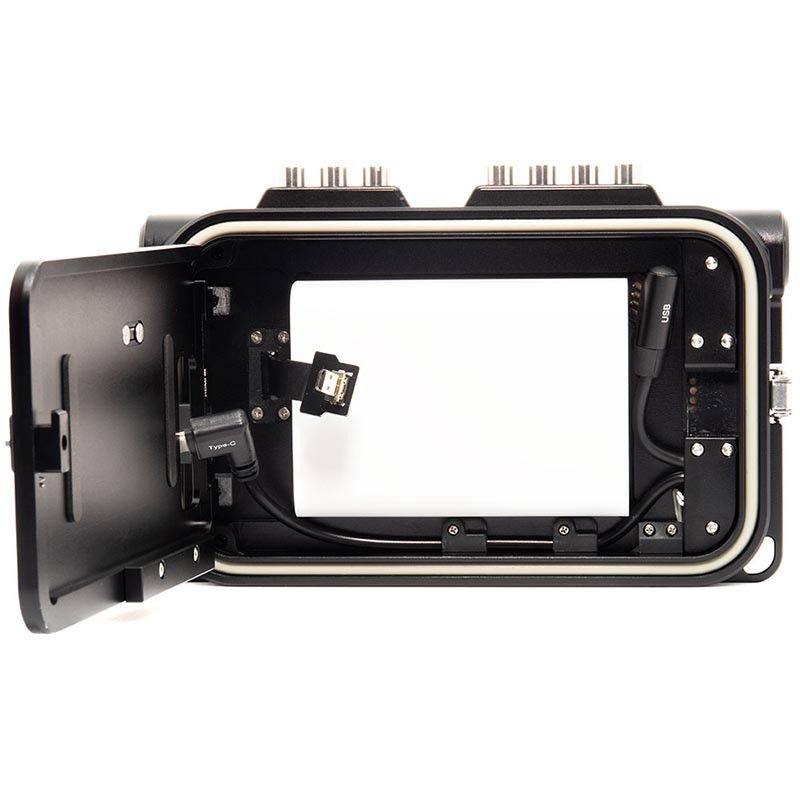

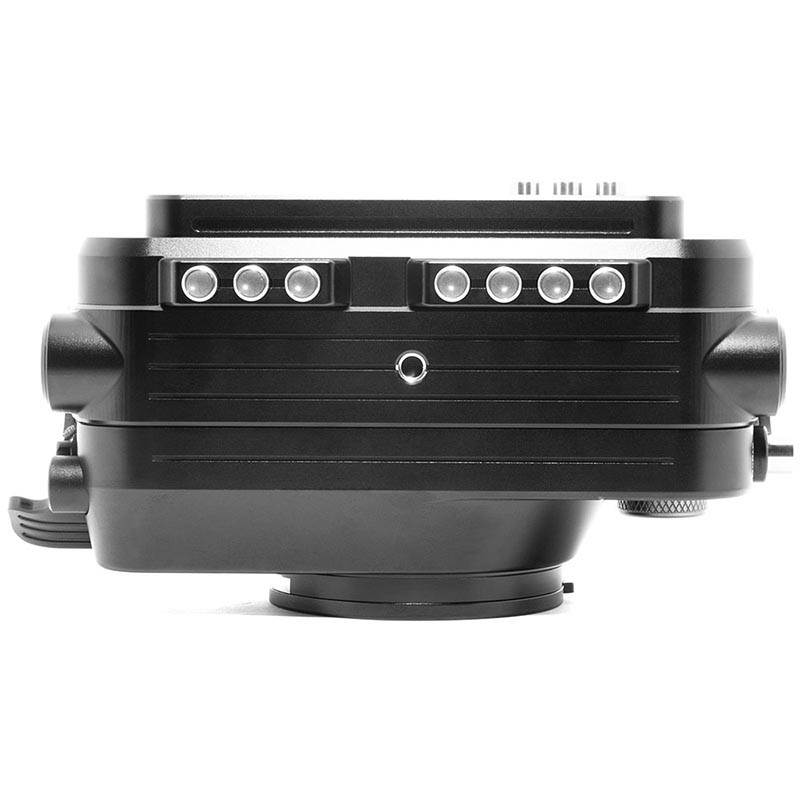

AOI GoPro HERO 9, 10, 11, 12, 13 Underwater Housing & Monitor Package UH-GPXS
The AOI Underwater Housing & Monitor Package is compatible with GoPro HERO models 9, 10, 11, 12, and 13, delivering a rugged solution for immersive underwater filming. It provides full camera access—touch screen, buttons, microphone port, lens port—while maintaining depth protection. This gopro underwater case enables users to capture clear, stable footage in challenging aquatic environments.
By answering the need for a reliable gopro waterproof setup—complete with real-time monitoring—the package caters to both amateur and professional users seeking enhanced footage control. Its inclusion of an HD monitor lets users to preview framing and exposure before, during, and after submerged use and while filming. For those searching for perfect underwater gopro accessories to take your gopro deeper than the specified depth for naked GoPros, this is a comprehensive kit including mounting options, cables, and O-rings.
The housing features advanced optical elements to maintain the highest quality image and video capture, even in challenging underwater conditions. The housing will have the hugely popular Quick Release systems built in, enabling it to attach the UWL-03 and UCL-03 lenses, significantly improving the optical capabilities of GoPros.
Main Features of the AOI Underwater Housing & Monitor Package
- COMPATIBILITY: GoPro HERO 13, 12, 11, 10, and 9
- DEPTH RATING: 100 Meters / 330 feet
- BODY MAIN MATERIAL: Marine Grade Aluminum Alloy
- SURFACE FINISHING: Hardcoat Type III Anodizing
- MAIN BODY COLOR: Anodize Flat Black
- LENS PORT MOUNT & FILTER SLOT: AOI Quick Release System (QRS) - QR2 Mount with Color Filter Slot
- LENS PORT GLASS: Multi-layer AR and Hydrophobic Coating
- WATER LEAKAGE PROTECTION: Built-in Vacuum Analyzation & Water Detection System (VWS)
- BUILT-IN WATER DEPTH MONITOR: Max. Monitoring Depth up to 100 Meters with Preset Depth Alarm Function
- BUILT-IN DISPLAY MONITOR:
- 5" Full HD (1920x1080 pixels) 16:9 Display Monitor
- Viewing Angle 80° / 80° (L/R & U/D)
- High Brightness 400 cd/m2 and Contrast 1000:1
- Focus Peaking Assist
- Digital Zoom (4x, 9x, 16x) Assist
- RGB Histogram, Waveform, Vector Scope & Monochrome …etc. Functions
- Two Custom-setting Buttons (F1 & F2)
- Light Red & Deep Red Filters
- Monitor Shade
- USB Battery Pack
- Right & Left Handles
- Travel Case
- POWER SUPPLY: Removable Power Bank (22.5W, 10,000mAh) - Operation Time: 2 Hours 30 minutes
- MAIN BODY DIMENSIONS: 192mm(W) x 114mm(H) x 106mm(D) / 7.5in (W) x 4.5in(H) x 4.2in(D)
- MAIN BODY WEIGHT: On Land: Approx. 1,877g / 4.1lb - Underwater: Approx. 546g / 1.2lb
Benefits of Using This GoPro Underwater Camera Package
- Extends Camera Durability
- Protects against water intrusion, impacts, and scratches.
- Improves Filmmaking Confidence
- With an external monitor, you can frame shots accurately even when mounted on gear.
- Increases Usability Underwater
- Touch functions remain responsive; mechanical buttons work even with gloves.
- Reduces Post-Production Troubles
- Real-time monitoring prevents misaligned shots or exposure mistakes.
- Supports Diverse Action Footage
- Works for surf, snorkeling, diving, sailboat racing, paddleboarding, and more.
Related Underwater Gear Categories:
- Ikelite Housings, Strobes and Accessories
- Underwater Strobes & Flashes
- Underwater Video Lights
- Snoots for Underwater Strobes
- The Best Underwater Strobes and Flashes
- Our Best Travel BCD's for Underwater Photography
- Our Best Scuba Fins for 2024
- Housing with Monitor
- Detachable & Foldable Monitor Hood x 1pc.
- Removable Power Bank (22.5W, 10,000mAh) x 1pc.
- Vacuum Hand Pump x 1pc. ; Orientable Handgrip x 1pair
- Wrench x 2pcs. ; Torx Screw x 2pcs.
- Light Red & Deep Red Filters x 1pc each
- Wide Angle Lens UWL-03 x 1pc.
- Close-up Lens UCL-03 x 1pc.
- Spare Main Seal O-ring x 1pc.
- Spare O-ring for Vacuum Valve Protection Cap x 1pc.
- Silicone Grease x 1pc.
- Moisture Muncher CapsulesTM x 1pc.
- Splash Proof Carrying Case; Lanyard x 3pcs.
- Media Mod for GoPro HERO13/12/11/10/9
- Type-C Charging Cable x 1pc.
What depth does this GoPro waterproof housing support?
It’s depth-rated to 100 meters—designed for recreational diving and surf. Check the instruction manual for exact limits.
How do I use the external monitor with GoPro HERO 13?
Connect via included HDMI cable, secure the arm, power up the housing, and view live feed instantly—framable even underwater.
Can I still use the touchscreen?
No. The housing uses external buttons for camera and screen operation, supplemented by a physical shutter button for stop/start.
Is the package compatible with accessories?
Absolutely. It supports all standard GoPro mounts—tripod, float arms, LED lights, and more.
Do I need to maintain the O‑rings?
Yes. Regularly clean, inspect, and lubricate O‑rings with the provided silicone grease to prevent leaks.
