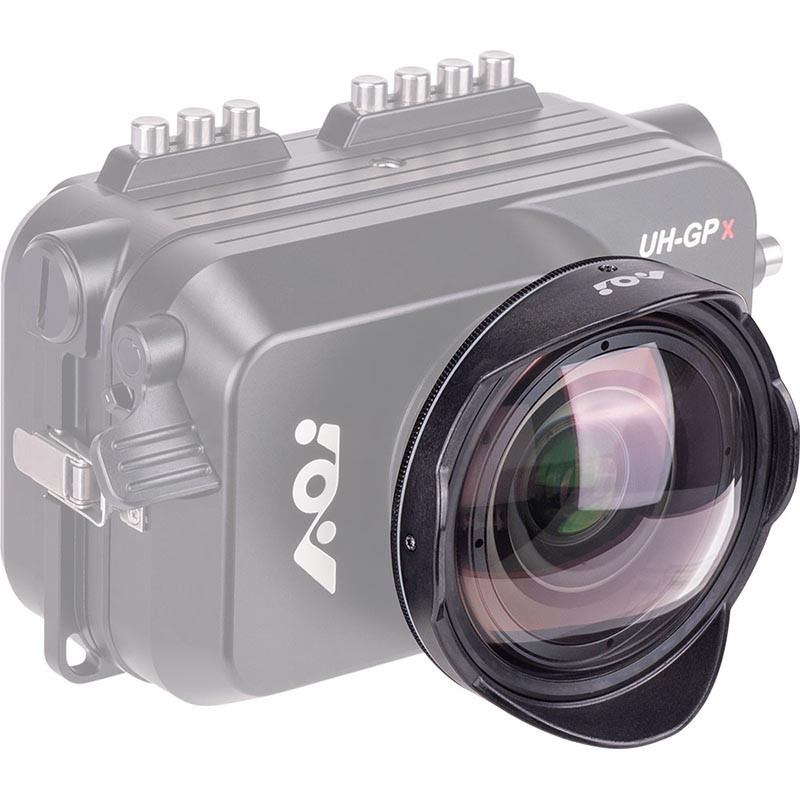

AOI UWL-03Pro Wide Angle Lens for Action Cameras and Smartphones
The AOI UWL‑03Pro (also referred to in some contexts as aoi ucl‑03 in legacy naming) is an underwater conversion lens designed for use with action cameras and smartphones—a true "wide angle wet lens" solution. It's built specifically to pair with GoPro accessories such as original GoPro housings via the AOI Quick Release System QRS‑02 mount. This lens addresses the limitations of AOI underwater imaging with flat-port housings, where refraction narrows the field of view (FOV) underwater and softens corners. By opting for this attachment, users effectively restore or expand the underwater FOV, delivering results markedly sharper than standard wide modes.
Its optical glass dome lens with multi-layer anti-reflective coatings reduces internal reflections and improves contrast, especially when shooting into strong light or at dawn/dusk. The lens uses 4 elements in 4 groups, delivering a reliable 0.73× magnification underwater which boosts the field of view to approximately 140° underwater (150° on land). All these elements create the ability for the shooter to get closer to the subject, allowing for less water between subject and camera, thus the lights will be more effective and colors will be better.
Intended for use by GoPro HERO series (Hero 12 and Hero 13) users, action camera enthusiasts, smartphone underwater housing users, and divers seeking better underwater imagery, the AOI UWL‑03Pro lens is compatible with many cameras through optional M46, M52, and M55 threaded adapters for universal mounting
Key Features of the AOI UWL‑03Pro
- Lens Construction: 4 Elements in 4 Groups
- Lens Coating: All Glass Elements with Multi-layers AR Coating, Optical Grade Glass Dome Lens with Inner Surface Multi-layers AR Coating
- Field of View: 140° (underwater) / 150° (on land)
- Magnification: 0.73X (underwater)
- Mount System: Using AOI Quick Release System - 02 (QRS-02)
- Lens pre-installed with QR2 Mount (compatible with the most popular AD Mount)
- Optional Mounting Adapter in M55, M52 & M46 available
- Depth Rating: 100 Meters / 330 Ft.
- Lens Barrel / Lens Hood Material: Aluminum Alloy with Black Hard Anodized / Polycarbonate
- Weight (on land/underwater): 350g (on land) / 193g (underwater)
- Dimensions: 99mm (D) X40.3mm (H)
Key Benefits of the AOI UWL‑03Pro
- Improved clarity and sharpness — getting closer to subjects avoids suspended particles and reduces motion blur.
- Enhanced color recovery — shorter subject distance and AR coatings preserve richer tones with artificial light.
- Wider composition underwater — full panoramic and macro-capable framing without fisheye distortion.
- Versatile mounting — quick bayonet release system makes mounting even during a dive simple and secure.
- Portable and durable — corrosion-resistant materials, hard-coated dome glass, and travel-friendly weight.
