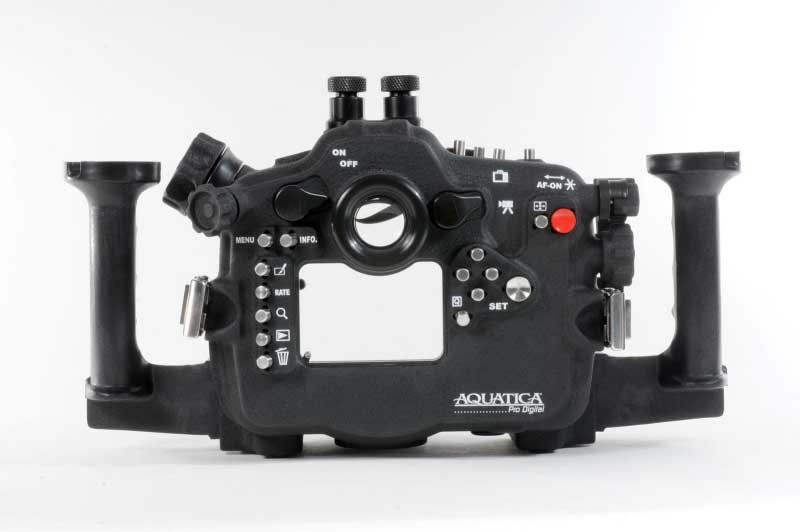

Aquatica Canon 5D Mark III Underwater Housing
The Aquatica A5D Canon Mark III underwater housing benefits from the finest material available in the industry. Carefully crafted from a selected alloy of aircraft grade aluminum and premium grade of stainless steel, the housing is machined on the latest 5 axis computer assisted machines. it is then protected by anodizing to North American military specification for further protection, Aquatica provides corrosion inhibiting zinc anodes as standard equipment and coats their housing with a baked on, tough as nail, powder coating. This extra level of protection does make a huge difference as can be seen on some Aquatica housings that even with over 1,500 dive on them, still look as fresh as the day they came out of the box. This housing is made for the hard working professional in mind, one who truly understands reliability in the field.
Aquatica 5D Mark III Housing Features

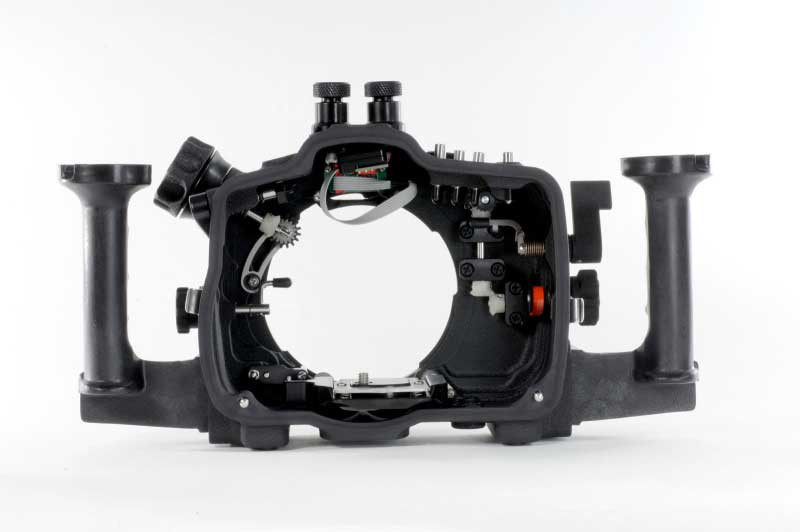

We introduced on this housing a newly designed camera tray; it smoothly and precisely positions the camera in the housing and is easily disengaged by a simple push on a tab. The zoom actuating pinion gear and the lens release lever pull out to allow the user to remove the camera from the back while keeping a lens and zoom gear attached.
Additional bulkheads pass through access holes have been added (bringing the total to three) to allow uses of potential accessories such a external monitor, triggering device and/or sound recording accessories. Given the immense impact its predecessor, the Aquatica 5D Mk II, had on the underwater video industry, it was deemed absolutely important that this new housing be optimized even more for this task, all video controls where redesigned for easier reach and smoother operation, without sacrificing nothing to the still image side of the housing operation.
The AF-ON & star button access is now provided with a rotating collar that prevents ambient pressure from pushing it back toward the housing. Menus buttons have been angled to provide better access from your left hand. A new gear system with a smaller housing pinion gear and larger lens gear results in smoother action while zooming in a video sequence.
The A5D Mk III housing was made as small as a it could be, nevertheless its lightness in weight should not be taken for a weakness. This housing still has the same standard 90m/300ft depth rating and can still be upgraded to 130m/425ft. Its knurled knobs and oversized controls mean easy operation no matter what the situation is. Being built in Canada means that every Aquatica housing is born and bred in one of the world most rugged diving environment. Bottom line, if it works in our local conditions, it will work everywhere else!
Handling is still via molded grips, they have been the reference in comfort for the last 25 years. Theses lightweight yet sturdy grip handles are made of one piece and cannot come unglued, fall apart or corrode. Both grips are provided with mounting holes ready to accept the most current strobes and their supporting arms. The housing has an extra mounting point for a focus/video light or other accessories on top and 3 additional mounting points are provided under for various brackets, support or tripods.
Aquatica 5D Mark III Strobe Bulkheads
Bulkhead strobe connectors have also evolved, with six active pins bulkhead giving access to TTL flash exposure via currently available third party TTL converters. They are now user serviceable and replacing them is done quickly without requiring the need for any special tool, in a matter of minutes. Again, these improvements were implemented with the working professional in mind, reliability and user’s friendly field maintenance being the key word here.
The Aquatica A5D Mk III is supplied with our Galileo type eye piece. This high quality and coated optical finder gives a bright and full view of the view finder. For those seeking the ultimate in viewing for still image, the optional Aqua View Finder, available in straight and 45 degrees version, are among the best of the industry, they can easily be installed in a matter of a few minutes by the user. The enlarged and enhanced image provided by the Aqua View Finder is second to none in clarity, It provides the photographer with tack sharp corner to corner viewing of the camera view finder for composing and critical focusing
The A5D Mk III is supported by one of the most established and comprehensive port and accessories system of the industry. The Canon 5D Mk III is destined, much like its predecessor, the 5D Mk II, for a life of multi tasking role. This previous A5D Mk II is still being used by many of the major television underwater documentary production; it has been embraced by scores of top image makers in the world whose work can be seen weekly on network television, advertising work and movie productions.
This philosophy that made the Canon 5D Mk II and its Aquatica housing so popular has not been lost on this newer version! Every effort was made to give you an underwater imaging system that can be tailored to your needs.
Dimensions (with grip attached): W 35cm x H 19.5cm x D14.5cm / W 13.78” x H 7.65” x D 5.72”
Dimensions (without grip): 23cm x H 19.5cm x D14.5cm / W 9.06” x H 7.65” x D 5.72”
Priced at just 3,199.00 USD, it is the most economical and best designed of its category.
Recommended Accessories
- Aquatica 5D Mark III O-ring Kit - its always essential to have a spare o-ring when going on dive trips.
- Aquatica Aqua View 45 degree Viewfinder
- Aquatica Aqua View 180 degree Viewfinder
- Aquatica Vacuum Valve and Pump
Aquatica 5D Mark III Housing Video
Aquatica A5D MkIII Housing Review from the Field
