Name: Nauticam Canon C400 Underwater housing
Brand: Nauticam
SKU: NAU-16125
Price: 11000 USD
Availability: InStock

Description
Specifications
What’s in the Box
FAQ
Lifetime support

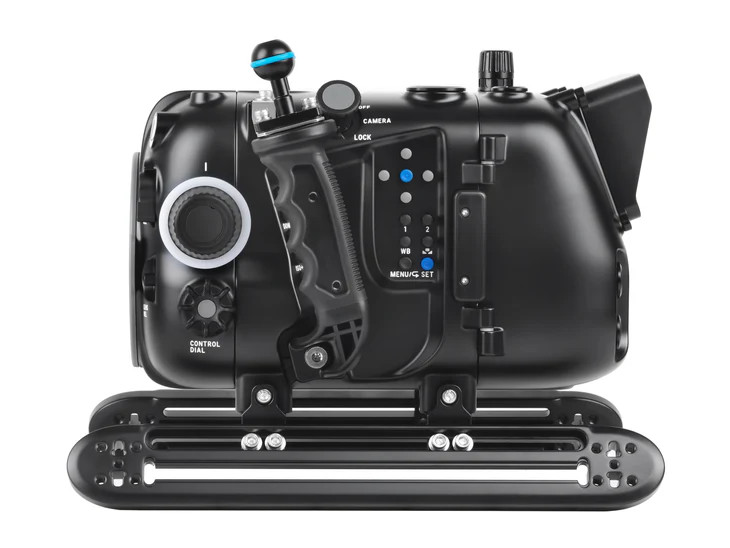

Nauticam Canon C400 Underwater Housing

The Nauticam NA-C400 underwater housing is a professional-grade enclosure designed for the Canon EOS C400 cinema camera. As part of the Nauticam cinema housing lineup, it enables full access to camera controls and supports underwater operation at depths of up to 80 meters. The housing is constructed from hard-anodized aluminum alloy and supports a modular port system, camera-specific mounting features, and advanced connectivity options. It is compatible with the N120 Nauticam port system, which is supported by detailed Nauticam port charts for configuring optics, extension rings, and focus gears.

This Nauticam housing offers mechanical and electronic access to all key camera functions required by underwater cinematographers. These include lens adjustments, ISO, aperture, shutter, white balance, recording triggers, and more—controlled through ergonomic levers, knobs, and electronic control boards integrated into the handle grips. The system includes an internal mounting bracket to support the Canon LM-V2 LCD monitor, allowing real-time visual feedback during underwater operation via a rear-facing window.

The design of this Nauticam underwater housing takes into account both the physical dimensions of the Canon C400 body and the power options available with Canon’s BP-A batteries. It accommodates both the camera and accessories like the top handle and LCD monitor, with ample internal space for cable routing, video output, and bulkhead expansion. The housing includes multiple bulkhead ports, including M16, M10, and M28 sizes, for use with HDMI 2.0, SDI, vacuum valves, and accessory integration.

In terms of power and monitoring, the housing includes output options for both HDMI 2.0 and SDI via dedicated bulkheads. This facilitates connection to external monitors or recorders for topside or subsea use. The main control layout has been organized for intuitive use with drysuit gloves or bare hands, and the internal space is designed to avoid cable obstruction or camera misalignment.

Nauticam NA-C400 underwater housing Specifications & Features

Housing dimensions: 232 mm (W) × 194 mm (H) × 298 mm (D)
Weight in air: 6.64 kg (including handles and skids)
Buoyancy: negative 1 kg in water with camera, LCD monitor, and BP‑A60 battery pack
Depth rating: 80 m (some retailers list 100 m, but manufacturer spec is 80 m)
Port system: N120 (shared with other Nauticam cinema housings)
Accessory bulkheads: front 2× M10; middle 1× M16 and 1× M28; rear 4× M16

NA-C400 Underwater Housing Controls and Connectivity

Mechanical controls: Power On/Off, Zoom, Focus, Lens Release via ergonomic knobs
Electronic (remote) controls: exposure, ISO ±, IRIS ±, Rec, Fn3/4, MENU/REC Review via left and right handle boards and main board
Internal support and mounting bracket for the Canon C400’s detachable LCD monitor, viewed through a shaded rear window
Built‑in HDMI 2.0/1.4 and SDI outputs via M‑series bulkheads for external monitoring or recorder connectivity

NA-C400 Materials, Build, and Safety

Aircraft‑grade aluminum construction for durability and manageable weight
Pre‑installed vacuum valve and leak detection system to alert operator in the event of seal compromise

Key Features of the NA-C400 Underwater Housing:

Patented Port Locking System

The locking lever has been a signature of Nauticam. No twisting or threading action is required to mount a port, and it locks securely in place with this lever.

Housing Locking Latches

Easy use housing closure system, requiring very little hand strength to operate, secures the housing back in place. The latches are safely locked to prevent accidental opening, but are easy to open when needed for a quick battery or memory card change.

HDMI Output

The Nauticam Sony A7S III Underwater Housing supports HDMI 2.0 connection for external monitor

Mission Control

Nauticam housings have been designed to have top-notch ergonomics. Essential shooting controls are very accessible even while holding the housing grips.

NA-C400 LCD Monitor Support

The C400 features a detachable LCD screen that can be easily integrated into the NA-C400. The LCD monitor is supported inside the housing and is mounted at the rear of the camera with a supplied bracket that allows it to be easily viewed underwater through the shaded rear window making for a streamlined filming solution.

NA-C400 HMDI/SDI

The NA-C400 supports Nauticam's optional HDMI 2.0 and 1.4 system that can accommodate external monitors or recorders in Nauticam housings. SDI output is also available for either surface monitoring or supported monitors. The NA-C400 has 1 M28 and 5 M16 bulkheads to accommodate a variety of configurations to suit mounted or remote setups.

NA-C400 Battery

The NA-C400 can accommodate either the BP-A30N or BP-A60N batteries or a combination of the BP-A30N and an FXLION NANO THREE 150Wh Micro V-Mount battery for extended runtimes.

Canon C400 Cinema Camera

Canon C400

In the ever-evolving landscape of filmmaking and content creation, the Canon EOS C400 cinema camera stands as a testament to the brand's unwavering commitment to innovation. This powerhouse of a camera, with its back-illuminated stacked CMOS sensor and native RF-mount, is poised to redefine the standards of cinematic excellence. Designed with the demands of the film and live production markets in mind, the EOS C400 promises to deliver stunning imagery, unparalleled versatility, and a host of cutting-edge features that will captivate seasoned professionals and aspiring creators alike.

Sensor Technology: Elevating Image Quality: At the heart of the Canon EOS C400 lies a newly developed 6K full-frame, back-illuminated CMOS sensor. This revolutionary sensor design not only enhances the camera's low-light performance but also ushers in a new era of image quality. With triple-base ISO settings of 800, 3200, and an astounding 12,800, the EOS C400 is capable of delivering breathtaking visuals even in the most challenging lighting conditions.

Dual Pixel CMOS AF II: Precise Autofocus: The EOS C400's sensor also empowers the next generation of Canon's renowned Dual Pixel CMOS Autofocus technology, known as Dual Pixel AF II. This advanced system widens the autofocus area to encompass up to 100% of the sensor, ensuring that your subjects remain in sharp focus no matter where they wander within the frame. The autofocus functionality is further enhanced with improved people and animal tracking, as well as customizable focus area sizing, making the EOS C400 a versatile tool for a wide range of production scenarios.

6K Oversampling: Enhancing 4K Image Quality: The EOS C400's 6K sensor not only enables high-resolution recording but also serves as the foundation for exceptional 4K image quality. By oversampling the 6K readout, the camera is able to produce 4K footage with significantly reduced moiré and other artifacts, delivering a clean and cinematic look that will impress even the most discerning viewers.

Cine-Servo 17-120mm Lens: Cinematic Perfection: Alongside the EOS C400 camera, Canon has also introduced an updated version of its acclaimed Cine-Servo 17-120mm T2.95-3.9 lens, now available in a native RF mount. This versatile lens builds upon the legacy of the Cine-Servo line, offering enhanced features and capabilities that complement the EOS C400's advanced sensor and recording options.
